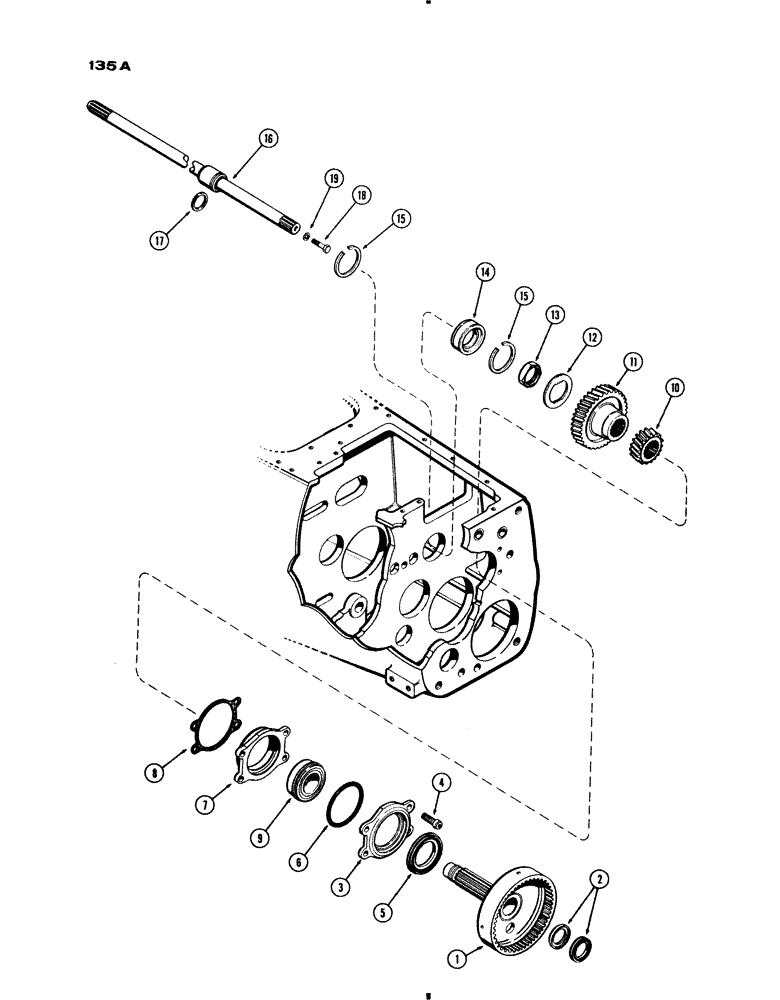

Запчасти Case IH 730 SERIES (135A) - RANGE AND P.T.O SHAFTS, TORQUE CONVERTER (06) - POWER TRAIN

1

A33747

SHAFT

- range drive

1шт.

2

A11593

OIL RESERVOIR

SEAL - oil range shaft front (1-1/2 x 1-61/64 x 1/4")

2шт.

3

A32031

CARRIER - rear oil seal

1шт.

4

A11638

BOLT - carrier

4шт.

5

A11592

OIL SEAL

SEAL - oil, range shaft, rear (2-7/8 x 3-7/8 x 15/32")

1шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O"RING - oil seal carrier (4 x 4-1/4 x 1/8")

1шт.

7

A32032

CARRIER - front bearing

1шт.

8

A32033

GASKET

- bearing carrier

1шт.

9

A34230

BALL BEARING,1.9685" ID x 3.5433" OD x 1.1875"

BEARING - range drive, front

1шт.

10

A11608

GEAR - low range (18 teeth)

1шт.

11

A11610

GEAR - high range (38 teeth)

1шт.

12

A32035

LOCK WASHER

- lock, range drive nut

1шт.

13

A32034

NUT

- lock, range drive

1шт.

14

A28149

ROLLER BEARING,1.7311" ID x 2.8346" OD x 1.0625"

BEARING - range shaft, rear

1шт.

15

A28153

RING

- snap, rear brg. ret.

2шт.

16

A32052

SHAFT

PTO

1шт.

17

A21273

SEALING RING

RING - sealing, range shaft seals

1шт.

18

114-214

BOLT,Locking, 3/8" - 24 x 3/4", Gr 5

- (3/8 x 3/4" N.F. hex. spec.)

1шт.

19

A22317

WASHER

- PTO shaft (25/64 x 9/16 x 3/64" cpr.)

1шт.
