(175A) - TRANSMISSION CASE COVERS, ALL 730 AND 830 EXCEPT GROVE, AND 730 GROVE

Запчасти Case IH 730 SERIES (175A) - TRANSMISSION CASE COVERS, ALL 730 AND 830 EXCEPT GROVE, AND 730 GROVE (08) - HYDRAULICS

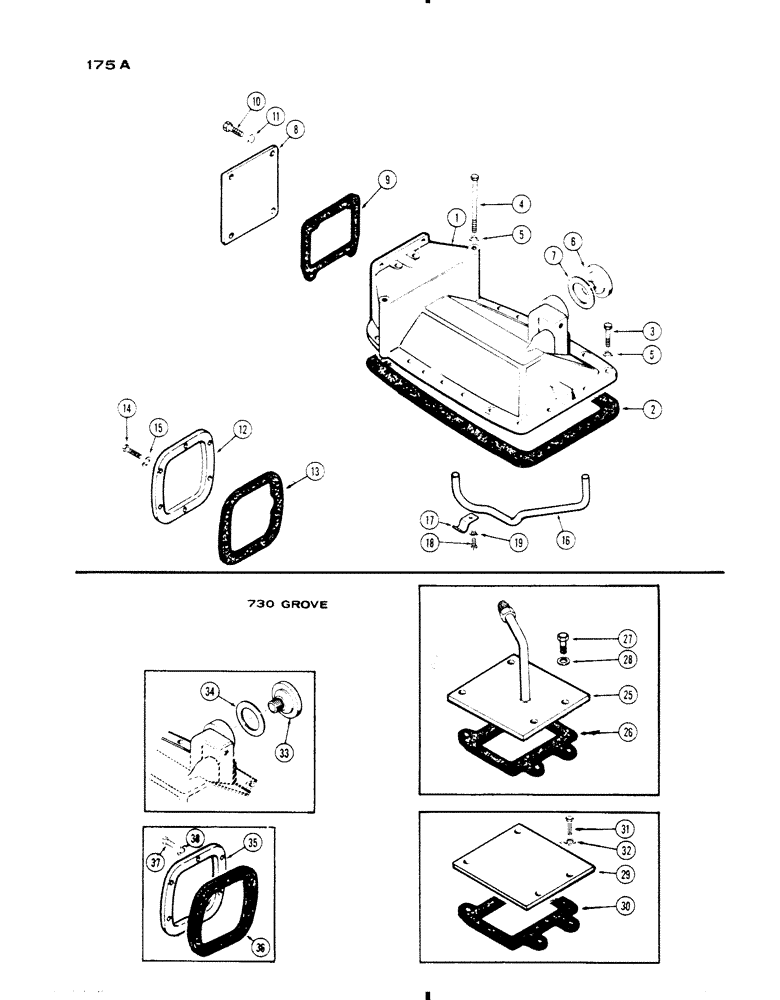

Схема запчастей Case IH 730 SERIES - (175A) - TRANSMISSION CASE COVERS, ALL 730 AND 830 EXCEPT GROVE, AND 730 GROVE (08) - HYDRAULICS
5
38
15
16
33
4
1
28
36
19
17
32
14
25
26
9
6
10
12
5
29
11
2
37
7
30
27
35
18
34
3
13
31
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A33520

COVER - trans., rear

1шт.

2

A32299

GASKET

- rear cover

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover Hex, 1/2"-13 x 1 1/2", G5, Full Thd

14шт.

4

15-8112

BOLT

- (de-luxe seat) (1/2 x 7" N.C. hex.)

2шт.

4

15-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

- (std. seat) (1/2 x 8-1/2" N.C. hex.)

2шт.

5

92-8

LOCK WASHER,1/2"

16шт.

6

A32355

COVER - filter opening

1шт.

7

A32356

GASKET - filter cover

1шт.

8

A32357

COVER - auxiliary valve opening

1шт.

9

A32349

GASKET

- auxiliary valve cover

1шт.

10

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd, Cover

2шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- cover (1/2 x 1-1/2" N.C. hex.)

2шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

A32354

COVER - hydraulic pump hole

1шт.

13

A32096

GASKET

- hyd. pump cover

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

A33521

PIPE CLAMP

TUBE - auxiliary valve return

1шт.

17

A33554

CLIP - aux. valve return tube

2шт.

18

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Clip Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

19

92-5

LOCK WASHER,5/16"

2шт.

25

A33931

COVER - (used w/out auxiliary valve), 730 grove

1шт.

26

A34138

GASKET

- cover, 730 grove

1шт.

27

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Cover, 730 grove Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

28

92-8

LOCK WASHER,1/2"

730 grove 1/2"

4шт.

29

A33930

COVER - (used w/out aux. valve or hyd. pump), 730 grove

1шт.

30

A34138

GASKET

- cover, 730 grove

1шт.

31

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Cover, 730 grove Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

32

92-8

LOCK WASHER,1/2"

730 grove 1/2"

4шт.

33

A32355

COVER - filter opening, 730 grove

1шт.

34

A32356

GASKET - filter cover, 730 grove

1шт.

35

A32354

COVER - hyd. pump opening, 730 grove

1шт.

36

A32096

GASKET

- cover, 730 grove

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover, 730 grove Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

38

92-6

LOCK WASHER,3/8"

730 grove 3/8"

6шт.
