(045C) - A40435 FUEL FILTER ASSEMBLY, 267 AND 301 DIESEL ENGINE, USED PRIOR TO ENGINE S/N 2206716

Запчасти Case IH 730 SERIES (045C) - A40435 FUEL FILTER ASSEMBLY, 267 AND 301 DIESEL ENGINE, USED PRIOR TO ENGINE S/N 2206716 (03) - FUEL SYSTEM

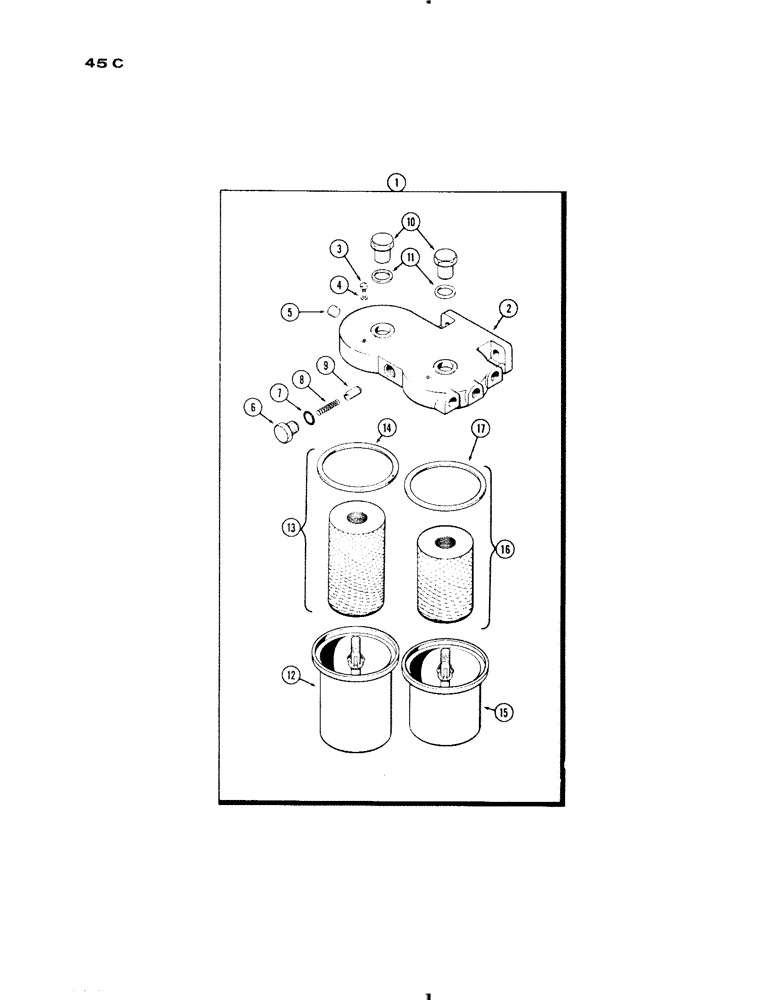

Схема запчастей Case IH 730 SERIES - (045C) - A40435 FUEL FILTER ASSEMBLY, 267 AND 301 DIESEL ENGINE, USED PRIOR TO ENGINE S/N 2206716 (03) - FUEL SYSTEM
12
16
7
14
5
6
17
2
11
1
10
8
15
3
9
13
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A40435

FILTER

ASSY. - 1st & 2nd stage, Includes: Ref. 2 - 17

1шт.

2

A24915

HEAD - filter

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

4

A20662

GASKET

WASHER - bleed screw

2шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- head (1/8" P.T., ctsk, hd.)

1шт.

6

A24916

PLUG

- relief valve

1шт.

7

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug (1/2 x 11/16 x 3/32")

1шт.

8

A24918

SPRING

- relief valve

1шт.

9

A24917

PLUNGER

- relief valve

1шт.

10

A21131

NUT

- body ret.

2шт.

11

A28055

GASKET

- nut

2шт.

12

A21129

BODY

- filter, 1st stage

1шт.

13

A21141

FILTER, ELEMENT

ELEMENT ASSY. - 1st stage filter (4-13/16" long), Includes: Ref. 14

1шт.

14

A28056

GASKET

-, Serial Range: body-head

1шт.

15

A21132

BODY

- filte, 2nd stage

1шт.

16

A7627

FILTER, ELEMENT

ELEMENT ASSY. - 2nd stage filter (3-7/8" long), Includes: Ref. 17

1шт.

17

A28056

GASKET

-, Serial Range: body-head

1шт.
