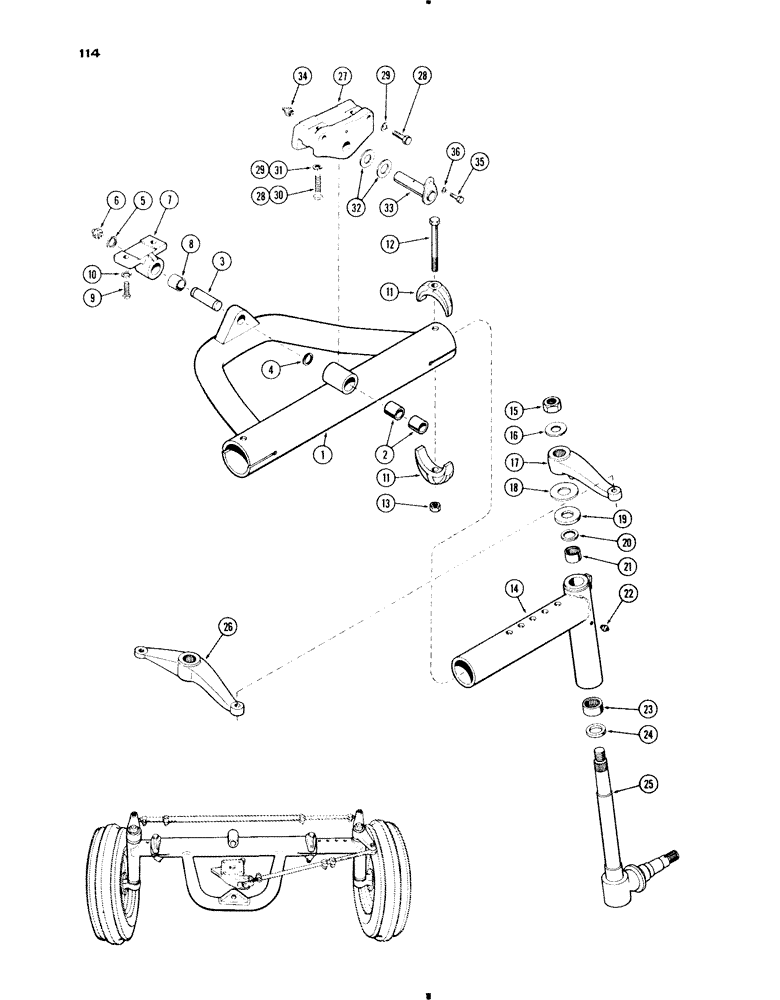

Запчасти Case IH 730 SERIES (114) - ADJUSTABLE FRONT AXLE, GEN. PURPOSE, 48" TO 73" & 53" TO 82" TREAD, USED PRIOR TO TRAC. S/N 8332878 (05) - STEERING

1

A24650

AXLE ASSY. - (48" to 73" tread) (33-1/2" axle), Includes: Ref. 2 - 4

1шт.

1

A24666

AXLE ASSY. - (53" to 82" tread) (38-1/2" axle), Includes: Ref. 2 - 4

1шт.

2

A7841

BUSHING,31.75mm ID x 38.18mm OD x 38.35mm L

- pivot pin (1-1/4 x 1-1/2 x 1-1/2")

2шт.

3

A24649

PIN

- pivot, axle radius rod

1шт.

4

F62020

SNAP RING,#125, Ext

RING - snap, , pivot pin #125, Ext

1шт.

5

F62020

SNAP RING,#125, Ext

RING - snap, , pivot pin #125, Ext

1шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 deg.)

1шт.

7

A24635

SUPPORT

ASSY. - axle radius rod, Includes: Ref. 8

1шт.

8

A24633

BUSHING,31.7mm ID x 38.18mm OD x 51.16mm L

- support

1шт.

9

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Support Hex, 5/8"-11 x 1 3/4", G5, Full Thd

2шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

A34684

CLAMP

- axle (Replaces A24629)

4шт.

12

15-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- clamp (3/4 x 8" N.C. hex.)

2шт.

13

25-1612

NUT,3/4"-10, G5, Hvy

- (3/4" N.C. hex.)

2шт.

14

A34763

EXTENSION - axle (5 hole) (48" to 73" tread) (w/1-3/8" wide stop), Start Serial: 8292763

2шт.

14

A24655

EXTENSION - axle (5 hole) (48" to 73" tread) (w/1" wide stop) (Order A34763), Serial Range: -8292763

2шт.

14

A34764

EXTENSION - axle (6 hole) (53" to 82" tread) (w/1-3/8" wide stop), Start Serial: 8292763

2шт.

14

A24667

EXTENSION - axle (6 hole) (53" to 82" tread) (w/1" wide stop) (Order A34764), Serial Range: -8292763

2шт.

15

129-131

NUT,1 1/8"-12, G5

- spindle retainer (1-1/8" N.F. hex.)

2шт.

16

A35047

WASHER

- spindle nut (1-3/16 x 2-1/2 x 5/32")

2шт.

17

A24653

ARM - steering, left hand

1шт.

18

A24645

SHIM,.0149" Thk

King pin (#28 gauge) .0149" Thk

1шт.

18

A24643

SHIM,.0359" Thk

King pin (#20 gauge) .0359" Thk

1шт.

18

A24642

SHIM,.0598" Thk

King pin (#16 gauge) .0598" Thk

1шт.

18

A24639

SHIM,.1345" Thk

King pin (#10 gauge) .1345" Thk

1шт.

19

A7849

GUARD

SHIELD - dust

2шт.

20

A27564

OIL SEAL

- oil (1-1/2 x 1-7/8 x 3/16")

2шт.

21

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING - needle, upper (1-1/2 x 1-7/8 x 1")

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

23

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, lower (2 x 2-3/8 x 1")

2шт.

24

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust

2шт.

25

A57441

STEERING KNUCKLE

SPINDLE - king pin & front wheel (Replaces A24638)

2шт.

26

A34798

ARM

- strg., right hand, Start Serial: 8305067

1шт.

26

A24652

X

ARM - str., right hand, (Order A34798), Serial Range: -8305067

1шт.

27

A34329

PEDESTAL - ft. axle (w/two 5/8" holes & two 3/4" holes), Start Serial: 8299844

1шт.

27

A24630

PEDESTAL - frt. axle (w/four 5/8" holes), Serial Range: -8299844

1шт.

28

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Pedestal (2 used w/A34329 & 4 used w/A24630) Hex, 5/8"-11 x 1 3/4", G5, Full Thd

1шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

30

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Pedestal (Used w/A34329) Hex, 3/4"-10 x 2 1/2", G5

2шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

32

B18131

WASHER,32.16mm ID x 55.63mm OD x 3.17mm Thk

- thrust (1-17/64 x 2-3/16 x 1/8")

2шт.

33

A24632

PIN

- pivot, front axle

1шт.

34

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

35

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.
