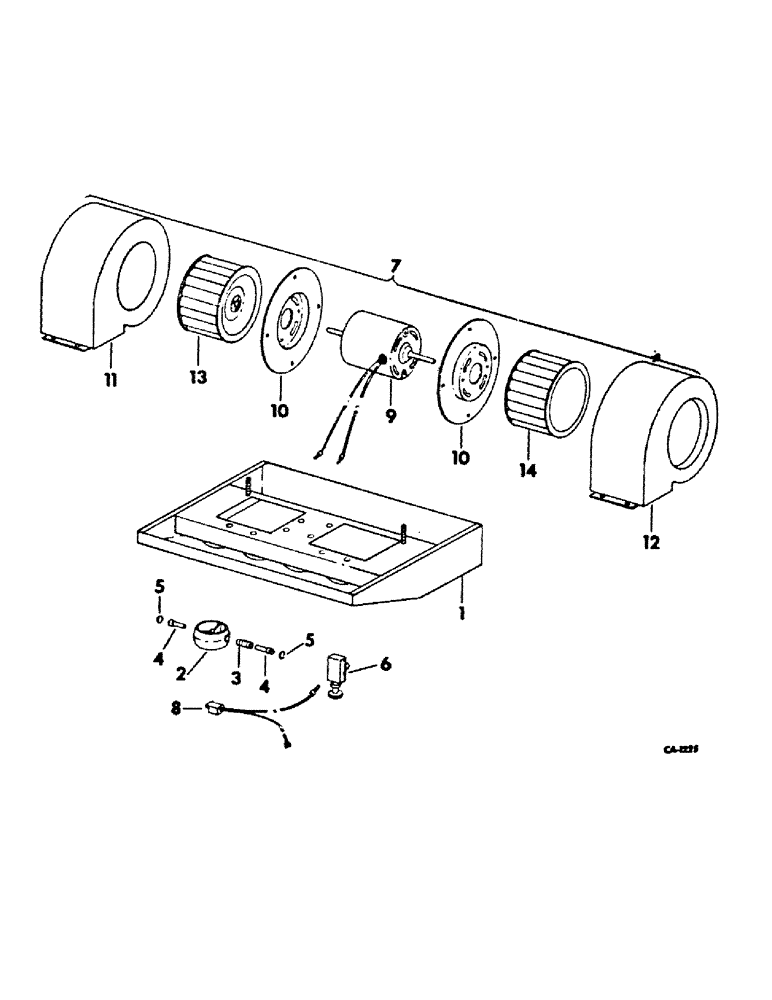

Запчасти Case IH 756 (N-18) - PARTS ACCESSORIES AND ATTACHMENTS, CAB PRESSURIZER Accessories & Attachments

533500R91

PANEL ASSY, pressurizer

1шт.

1

533776R1

PANEL ASSY, pressurizer

1шт.

2

533777R1

BALL

DIFFUSED, eyeball

5шт.

3

533778R1

SPRING

eyeball diffuser

5шт.

4

533779R1

PIN

eyeball diffuser

10шт.

5

533780R1

RETAINER

eyeball diffuser

10шт.

6

533781R1

SWITCH

blower

1шт.

7

533782R91

BLOWER ASSY, pressurizer

1шт.

8

533787R1

CABLE HARNESS, pressurizer

1шт.

9

533783R1

MOTOR

pressurizer

1шт.

10

533784R1

PLATE, motor mounting

1шт.

11

533786R1

SCROLL, RH

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

16шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

12

533785R1

SCHROLL, LH

1шт.

13

167092C1

WHEEL, RH blower

1шт.

14

167094C1

FAN

WHEEL, LH blower

1шт.
