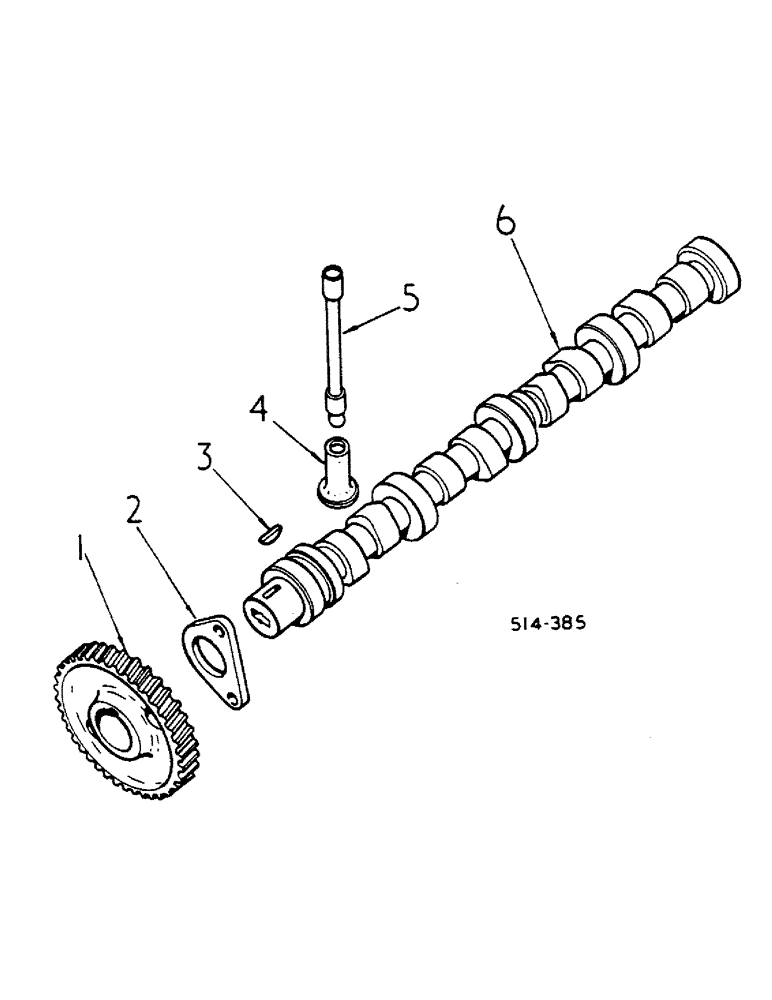

Запчасти Case IH 784 (12-18) - POWER, CAMSHAFT AND RELATED PARTS Power

1

3055176R1

PINION

GEAR, camshaft, 66T

1шт.

2

3055051R2

PLATE

camshaft thrust, or

1шт.

2

3218896R1

PLATE

camshaft thrust

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

3050129R1

LOCK WASHER

WASHER, 5/16 med lock

2шт.

3

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1/4 x 7/8 SAE A Woodruff, camshaft gear

1шт.

4

3055052R1

TAPPET

valve

8шт.

5

3144341R1

PUSH ROD

ROD, valve push

8шт.

6

3055046R3

CAMSHAFT

1шт.

Ref. 6 changed from 5 lobes to 3 lobes, see service manual.

1шт.
