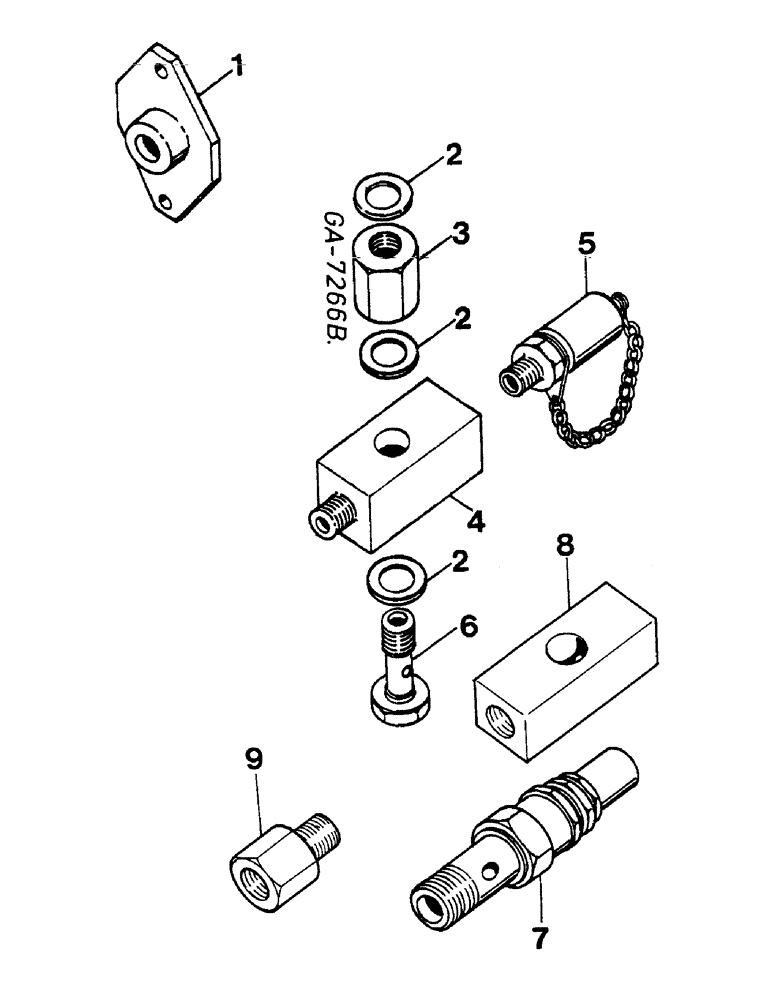

Запчасти Case IH 844S (02-12) - CONNECTING PARTS FOR IH-TEST CENTER Accessories & Attachments / Miscellaneous

3221908R91

PACKAGE

SET, CONNECTION PARTS - CONSISTS OF ITEMS 1-6 -

1шт.

1

3221912R91

COVER

INJECTION PUMP

1шт.

2

933697R1

SEALING RING,M10 x 13.5 x 1

3шт.

3

3221917R1

NUT

AIR CLEANER CONNECTION

1шт.

4

3221916R1

ADAPTER

CONNECTOR, AIR CLEANER

1шт.

5

3139135R1

COUPLING, BREAK AWAY

SCREW M16 X 1/8

7шт.

6

3221915R1

SCREW

HOLLOW

1шт.

7

NOT-USED

1шт.

8

NOT-USED

1шт.

9

3221918R91

UNION

SPARE PART CONNECTOR, M10 X 1/8

1шт.
