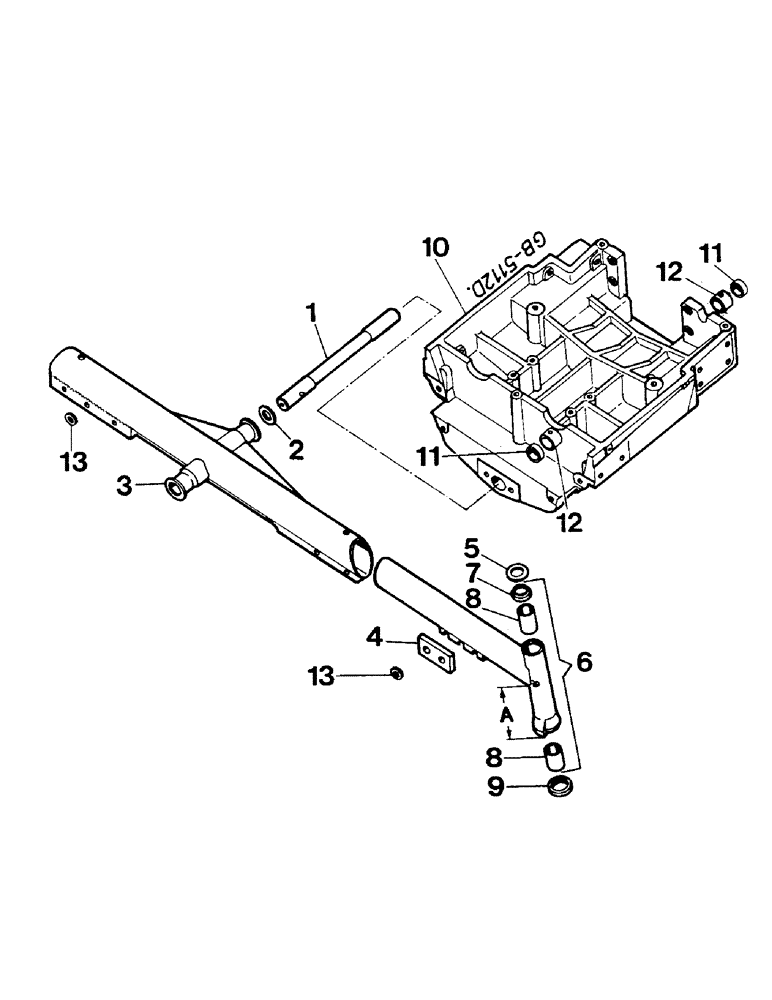

Запчасти Case IH 844S (14-04) - FRONT AXLE, ADJUSTABLE Suspension

1

3140082R1

PIVOT

PIVOT, FRONT AXLE

1шт.

3059875R6

SCREW,5/8" - 11 x 40mm

5/8 X 40 MM

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

2

3057042R1

SHIM,40.05mm ID x 59.94mm OD x 0.55mm Thk

1шт.

2

3059771R1

SHIM

AS REQUIRED

1шт.

3

3141504R92

AXLE

FRONT CENTRE

1шт.

3

3230082R1

CENTER AXLE

FRONT - VERSION WITH POWER STEERING -

1шт.

709415R1

BOLT

3шт.

218197

NUT,3/4"-16, G5

3шт.

4

3141593R1

PLATE

2шт.

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

2шт.

218197

NUT,3/4"-16, G5

2шт.

4

3134121R3

PLATE

- VERSION WITH POWER STEERING -

4шт.

114-615

BOLT,Hex, 5/8" - 18 x 3-1/4", Gr 5

4шт.

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

LOCK 5/8

4шт.

425-1110

NUT,5/8"-18, G5

4шт.

5

3059771R1

SHIM

0.20 MM

1шт.

5

3057042R1

SHIM,40.05mm ID x 59.94mm OD x 0.55mm Thk

0.50 MM

1шт.

5

3217593R1

SHIM

1.00 MM

1шт.

5

3217594R1

SHIM,40mm ID x 60mm OD x 1.5mm Thk

1.50 MM - AS REQUIRED EXTENSION, FRONT AXLE, VERSIN WITH POWER STEERING

1шт.

6

3230086R91

EXTENSION

FRONT AXLE LH FOR GROUND CLEARANCE, - 18 INCHES - 457 MM : A - 100 MM

1шт.

6

3230089R91

EXTENSION

FRONT AXLE LH - FOR GROUND CLEARANCE - - 20 INCHES - 508 MM : A - 150 MM

1шт.

6

3230094R91

EXTENSION

FRONT AXLE LH FOR GROUND CLEARANCE - 24 INCHES - 610 MM : A - 230 MM

1шт.

6

3230087R91

EXTENSION

FRONT AXLE RH FOR GROUND CLEARANCE - 18 INCHES - 457 MM : A - 100 MM

1шт.

6

3230090R91

EXTENSION

FRONT AXLE RH FOR GROUND CLEARANCE - 20 INCHES - 508 MM : A - 150 MM

1шт.

6

3230095R91

EXTENSION

FRONT AXLE RH FOR GROUND CLEARANCE - 24 INCHES - 610 MM : A - 230 MM EXTENSION, FRONT AXLE, VERSION WITH MECH STEERING -

1шт.

6

3145984R91

EXTENSION

FRONT AXLE FOR GROUND CLEARANCE - - 18 INCHES - 457 MM : A - 100 MM - 743/745S -

2шт.

6

3145983R91

EXTENSION

FRONT AXLE FOR GROUND CLEARANCE - 20 INCHES - 508 MM : A - 150 MM - 743/745S -

2шт.

6

3134182R93

EXTENSION

FRONT AXLE, RH FOR GROUND CLEARANCE - 24 INCHES - 610 MM : A - 230 MM - 743/745S -

1шт.

6

3134181R93

EXTENSION

FRONT AXLE, LH FOR GROUND CLEARANCE - 24 INCHES - 610 MM : A - 230 MM - 743/745S -

1шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

- 743/745S -

2шт.

7

3131033R1

SEAL,39mm ID x 53mm OD x 8mm Thk

SCRAPER

2шт.

8

3057051R1

BUSHING

4шт.

9

3057058R91

BEARING ASSY

THRUST

2шт.

10

3145870R93

CARRIER

SUPPORT, FRONT AXLE

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

10шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

2шт.

11

3137215R1

BUSHING,42mm ID x 48.07mm OD x 12.5mm L

RING, STOP

2шт.

12

3134952R1

BUSHING

2шт.

13

25548R1

WASHER

5шт.
