(07-008) - CLUTCH MECHANISM, SINGLE CLUTCH, (-XXX)

Запчасти Case IH 844S (07-008) - CLUTCH MECHANISM, SINGLE CLUTCH, (-XXX) (04) - Drive Train

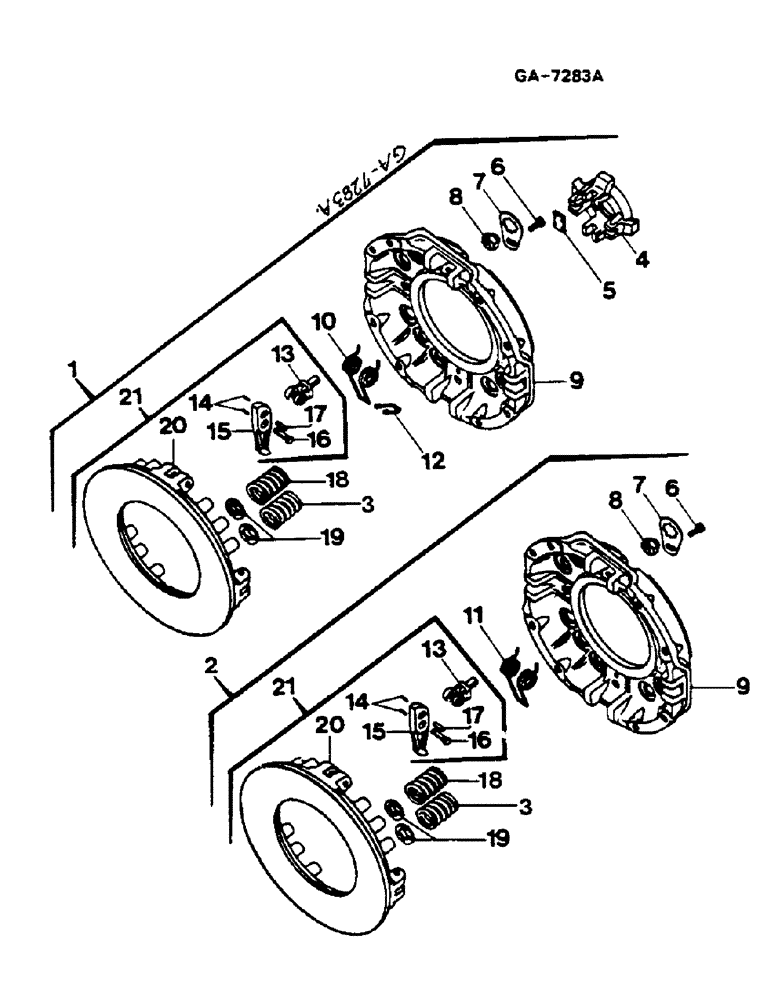

Схема запчастей Case IH 844S - (07-008) - CLUTCH MECHANISM, SINGLE CLUTCH, (-XXX) (04) - Drive Train
2
8
17
15
21
7
8
12
16
18
5
7
11
1
15
10
3
4
16
13
9
17
20
6
18
14
13
14
19
9
3
21
6
20
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3142129R91

PLATE, THRUST

CLUTCH, - 743/745S -

1шт.

2

3145303R1

CLUTCH ASSEMBLY

SPARE PART - 844S -

1шт.

3

3142126R1

SPRING

MAIN

8шт.

4

3058378R2

RING

RELEASE

1шт.

5

712688R1

PLATE

WEARING

4шт.

6

712684R1

SCREW,Sltd Pan Hd, M5 x 10

4шт.

712687R1

WASHER

LOCK

4шт.

7

712686R2

DISC

LOCK, BALL NUT

4шт.

8

712685R1

NUT

BALL

4шт.

9

3058377R1

HOUSING

CASE

1шт.

10

712682R1

SPRING

RETAINER

4шт.

11

3137962R1

RETAINER

SPRING

4шт.

12

3058379R1

SPRING

LEVER

4шт.

13

3058384R2

YOKE

UNIVERSAL JOINT YOKE ADJUSTING

4шт.

14

712692R1

NEEDLE

BEARING

152шт.

15

3058382R1

LEVER

RELEASE

4шт.

3058382R12

LEVER

RELEASE - CONSISTS OF ITEMS 13-16 -

4шт.

16

3056778R1

PIN

HEADED

4шт.

107762

WASHER,3/32" x 5/8"

4шт.

17

712691R1

PIN

STRAIGHT

4шт.

18

3142127R1

SPRING

MAIN

4шт.

19

712683R1

DISC

INSULATING

12шт.

20

3058381R1

PLATE

PRESSURE

1шт.

21

3058380R91

PLATE

PRESSURE

1шт.
