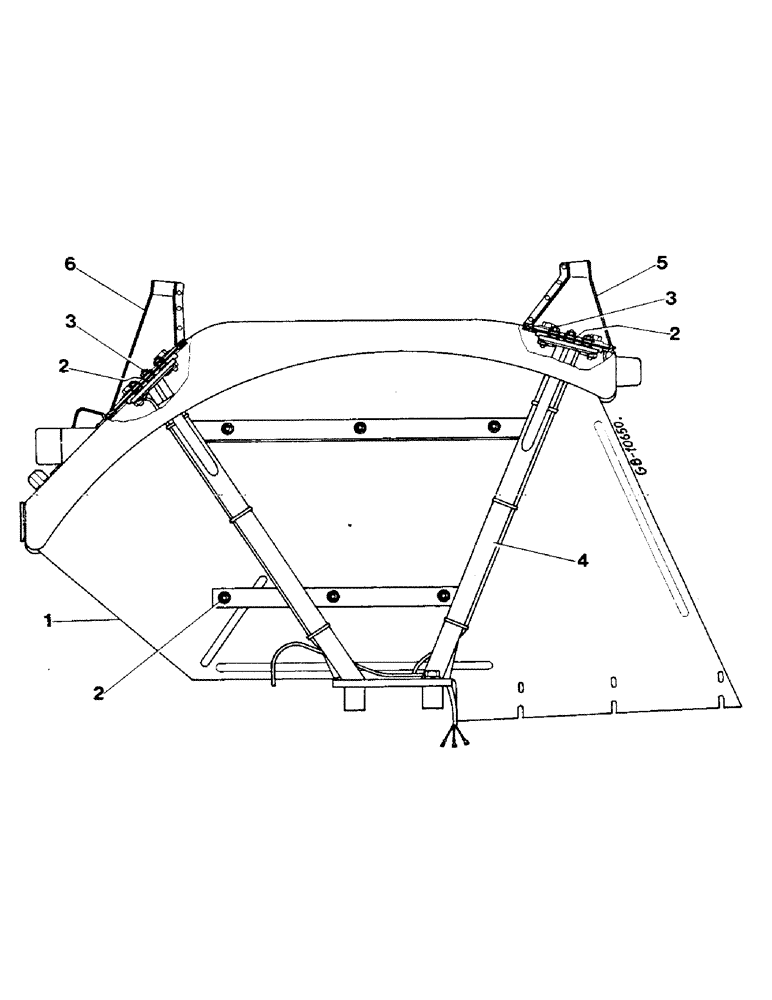

Запчасти Case IH 844S (13-20) - REAR FENDERS, 884S, FOR TRACTORS W/OUT CAB, BUT WITH INSULATING SHEETS, FOR GERMANY ONLY (05) - SUPERSTRUCTURE

1

3399284R1

FENDER

SPARE PART LH - USED W/SAFETY FRAME - - FOR REFLECTORS, LAMPS AND CABLES REFER TO APPROPRIATE SECTIONS -

1шт.

1

3399285R1

FENDER

SPARE PART RH - USED W/SAFETY FRAME - - FOR REFLECTORS, LAMPS AND CABLES REFER TO APPROPRIATE SECTIONS -

1шт.

2

3399274R1

GROMMET

48шт.

931608R1

BOLT

M10 X 40 MM

20шт.

100016

NUT,M10 x 1.5, Cl 8

24шт.

933133R1

WASHER,M10.5 ID x 20 OD x 2 Thk

10.5 MM DIA

24шт.

934050R1

WASHER,M11

SPARE PART

24шт.

3399273R1

WASHER

19.5 MM DIA

48шт.

3

3149459R1

STUD

2шт.

4

3399275R1

BRACKET

REINFORCEMENT LH

1шт.

4

3399276R1

BRACKET

REINFORCEMENT RH

1шт.

5

3399292R1

INSULATOR

FRONT FRAME - WITH 3226260R1

2шт.

6

3399294R1

INSULATOR

REAR FRAME - WITH 3 26260R1

2шт.

3226260R1

FASTENER

5шт.
