(15-006) - REAR WHEEL RIM AND DISC - CAST

Запчасти Case IH 884 (15-006) - REAR WHEEL RIM AND DISC - CAST Wheels & Traction

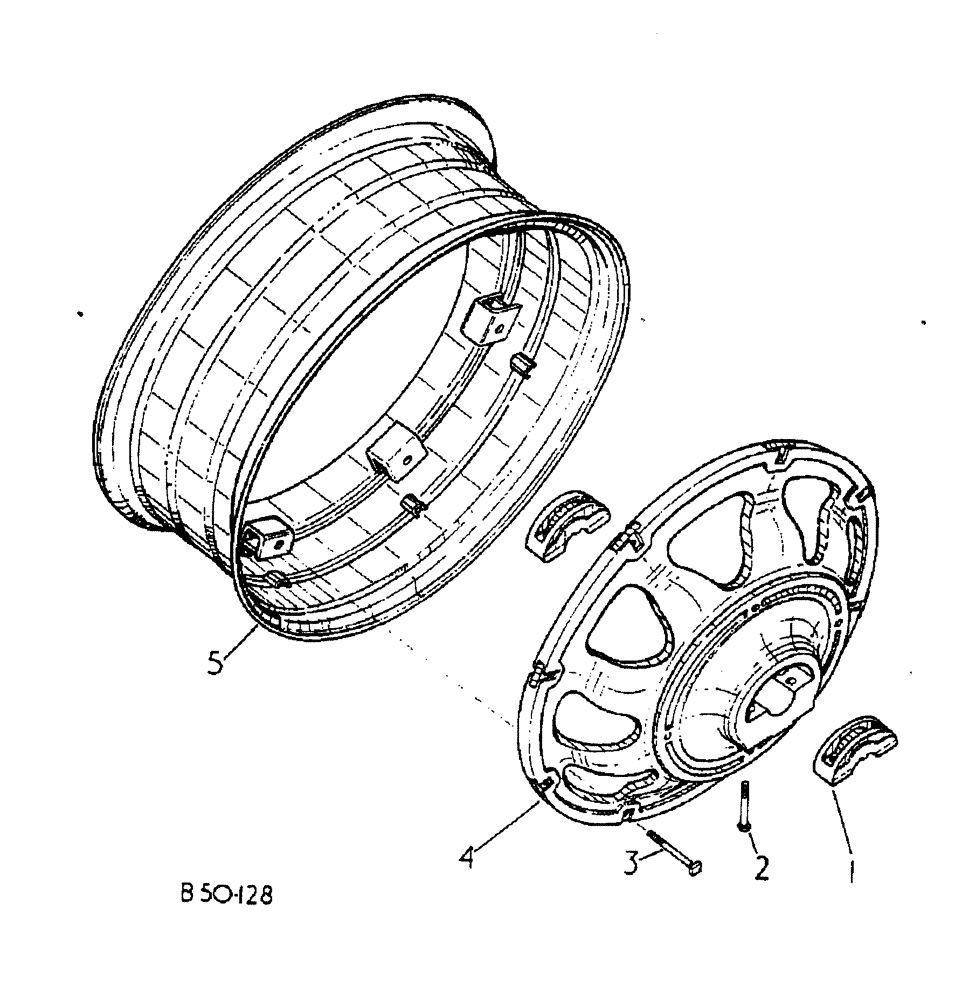

Схема запчастей Case IH 884 - (15-006) - REAR WHEEL RIM AND DISC - CAST Wheels & Traction
1
3
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

389539R1

CLAMP

REAR WHEEL HUB

4шт.

2

14-1480

BOLT,Hex, 7/8" - 14 x 5", Gr 5

7/7-19 X 4-3/4 HEX HD CAP

8шт.

3

381727R1

SCREW

BOLT, RIM CLAMP W/9-42

16шт.

3

3073516R1

BOLT

RIM CLAMP W/14-38, INCLUDES: NUTS

16шт.

363018R1

NUT

16шт.

4

3069092R1

DISC

WHEEL, REAR CAST

2шт.

5

3023513R91

RIM ASSY, REAR WHEEL W/11-38

2шт.
