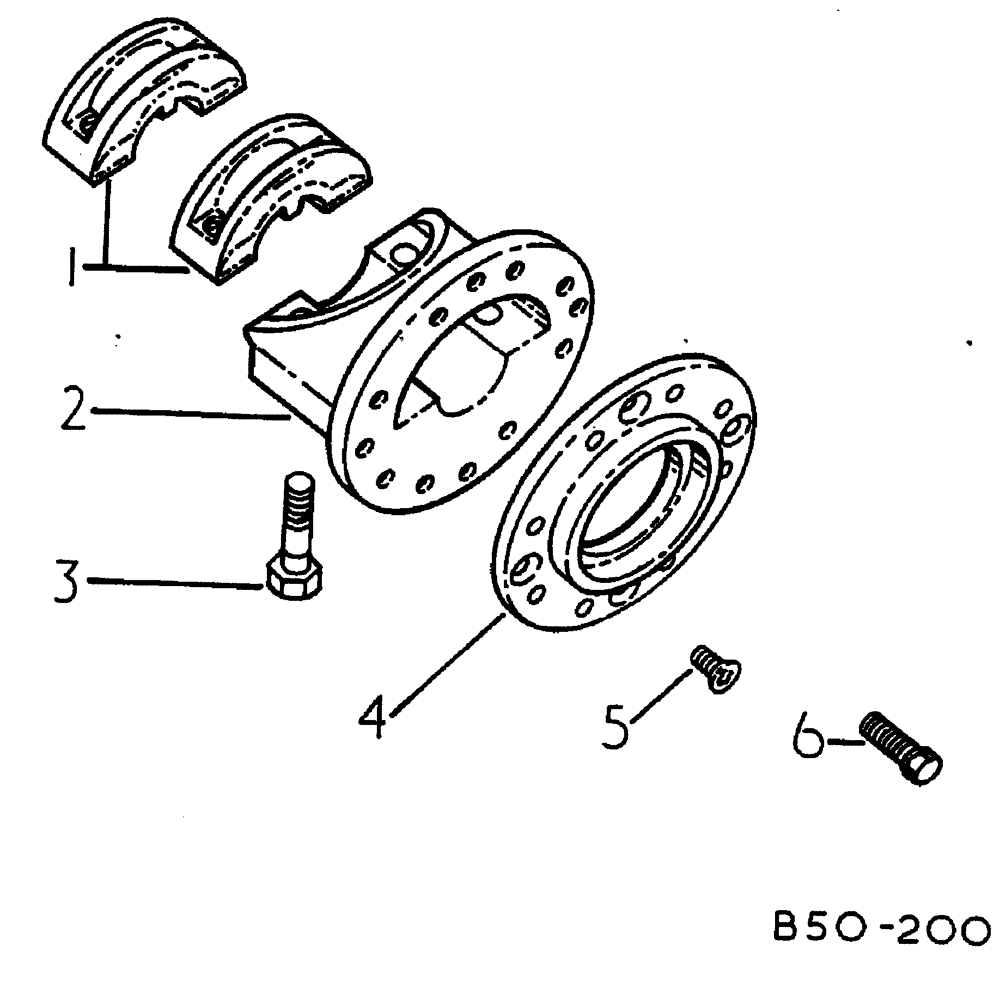

Запчасти Case IH 884 (15-010) - REAR WHEEL HUB - ROW CROP Wheels & Traction

3129132R91

ATTACHMENT, R C CAST WHEEL HUB

1шт.

1

389539R1

CLAMP

REAR WHEEL HUB

4шт.

2

530504R1

HUB

REAR WHEEL

2шт.

3

375552R1

BOLT,Spcl, Shoulder, Hex, 7/8" - 14 x 4 3/4", Gr 2

HUB CLAMP MOUNTING

8шт.

4

365957R2

FLANGE

REAR WHEEL HUB PILOT

2шт.

5

373367R1

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

PILOT FLANGE MOUNTING

8шт.

6

391004R1

BOLT,Hex, 5/8"

BOLT, REAR WHEEL MTG

16шт.
