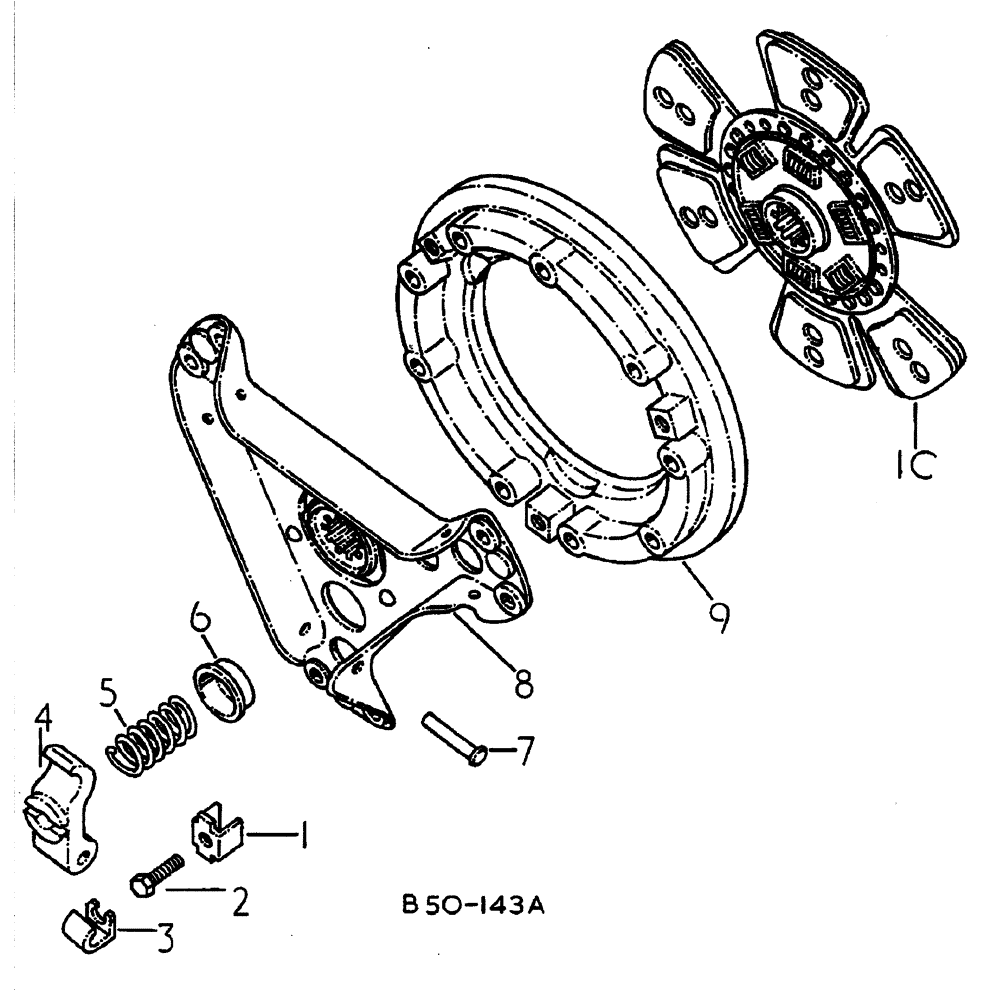

Запчасти Case IH 884 (07-010) - CLUTCH, UP TO 884/1412 - 885/1999 (04) - Drive Train

70716C1

COVER ASSY

CLUTCH PRESSURE PLATE CONSISTS OF REF NOS 1 TO 9, ALSO INCLUDES: SCREWS AND WASHERS

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

NSS

NOT SOLD SEPARAT

WASHER

3шт.

2

69911C1

KIT

COVER PARTS W/SCREW, CUP, NUT AND WASHER, ALSO INCLUDES: 5/16-24 HEX JAM NUTS

1шт.

NSS

NOT SOLD SEPARAT

NUT, 5/16-24 HEX JAM

3шт.

3

NSS

NOT SOLD SEPARAT

CLIP, RETURN

3шт.

4

69912C1

KIT

LEVER AND PIVOT PIN

1шт.

5

69910C2

KIT

PRESSURE SPRING AND CUP

1шт.

6

NSS

NOT SOLD SEPARAT

CUP, SPRING

3шт.

7

NSS

NOT SOLD SEPARAT

PIN, PIVOT

3шт.

8

69914C1

HUB ASSY.

KIT, BRACKET AND HUB

1шт.

9

69913C1

KIT

PRESSURE PLATE

1шт.

10

3121507R91

CLUTCH DISC

CLUTCH DISK PLATE ASSY, DRIVE

1шт.

10

293248A1R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 11 in., 10Tooth hub, full round disc, 6 button or 3 paddle 6 button, N.A. Only

1шт.

10

293248A1C

CORE-CLUTCH DISC

Return Number, N.A. Only

1шт.
