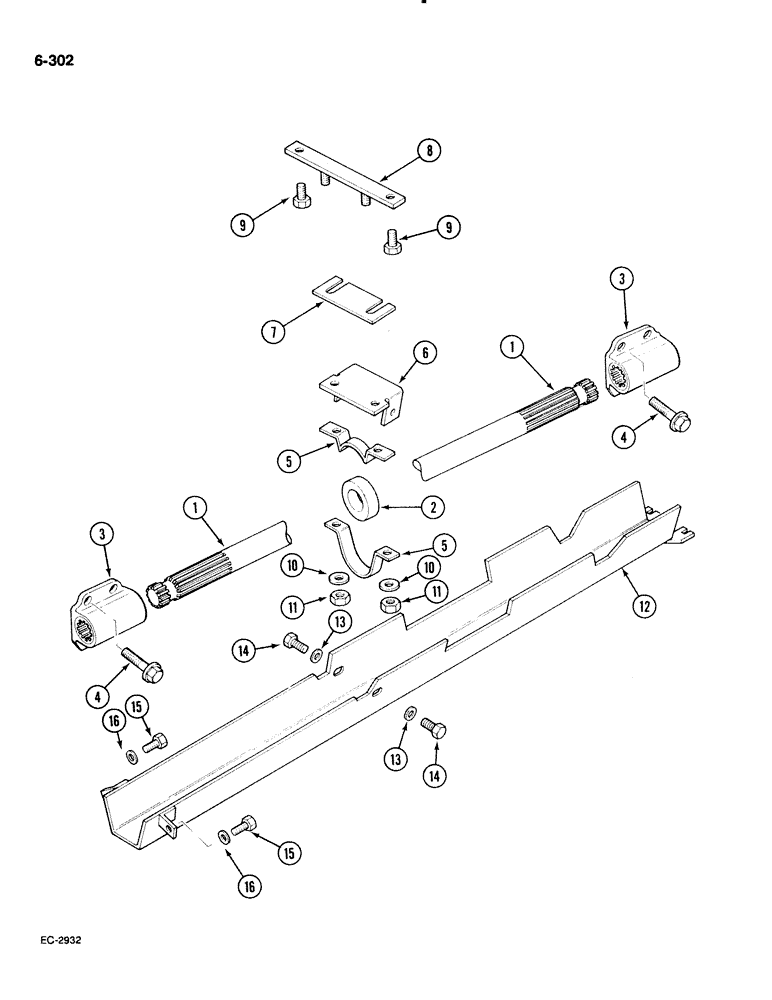

Запчасти Case IH 885 (6-302) - DRIVE SHAFT AND SHIELD, 4 WHEEL DRIVE P.I.N. 18001 AND AFTER (06) - POWER TRAIN

1

90028C1

SHAFT

- drive (Use bearing 82235C91)

1шт.

1

1335030C1

DRIVE SHAFT

SHAFT - drive, use bearing 82236C91, Replaces: 90028C1

1шт.

2

82235C91

BEARING, BALL,30 mm ID x 62 mm OD x 16 mm

BEARING - ball (Use with drive shaft 90028C1)

1шт.

2

82236C91

BEARING ASSY

- ball (Use with drive shaft 1335030C1)

1шт.

3

90031C2

SPLINED COUPLING,21T

COUPLING - drive shaft

2шт.

4

90088C1

BOLT,M12 x 1.5 x 47mm, Cl 12.9

- hex, M12 x 45 mm

4шт.

5

82234C1

CLAMP

HOUSING - bearing

1шт.

6

82211C1

SUPPORT ASSY.

SUPPORT - drive shaft shield

1шт.

7

82228C1

SHIM

- 2.0 mm

1шт.

7

82227C1

SHIM

- 1.0 mm

1шт.

7

82226C1

SHIM

- 0.5 mm

1шт.

8

89485C3

BAR ASSY.

BAR - support

1шт.

9

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

- hex, 3/8 NC x 1-1/8 inch, grade 5

2шт.

10

933348R1

WASHER,M10 x 20 x 2

- flat, 10.8 x 21 x 2 mm

2шт.

11

30168R1

NUT,M10, Cl 10

- hex, 10 mm, class 10

2шт.

12

82213C1

GUARD ASSY.

SHIELD - drive shaft

1шт.

13

3058250R1

WASHER

- 8.5 x 20 x 1.5 mm, flat

2шт.

14

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 8 mm x 20 mm, class 8.8

2шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

- hex, M10 x 20 mm, class 8.8, ZND

2шт.

16

933348R1

WASHER,M10 x 20 x 2

- flat, 10.8 x 21 x 2 mm

2шт.

1536604C1

SUPPORT

for new plastic MFD drive shaft shield

1шт.

1536605C1

LARGE PLATE

PLATE large, rear, for new plastic MFD drive shaft shield

1шт.

1536608C1

SUPPORT

SUPORT ASSEMBLY, center, for new plastic MFD drive shaft shield

1шт.

1536610C1

SUPPORT

ASSEMBLY, front, for new plastic MFD drive shaft shield

1шт.

1536612C1

LARGE PLATE

PLATE large, center, for new plastic MFD drive shaft shield

1шт.

1536606C1

SUPPORT ASSY.

SUPPORT ASSEMBLY, center, for new plastic MFD drive shaft shield

1шт.
