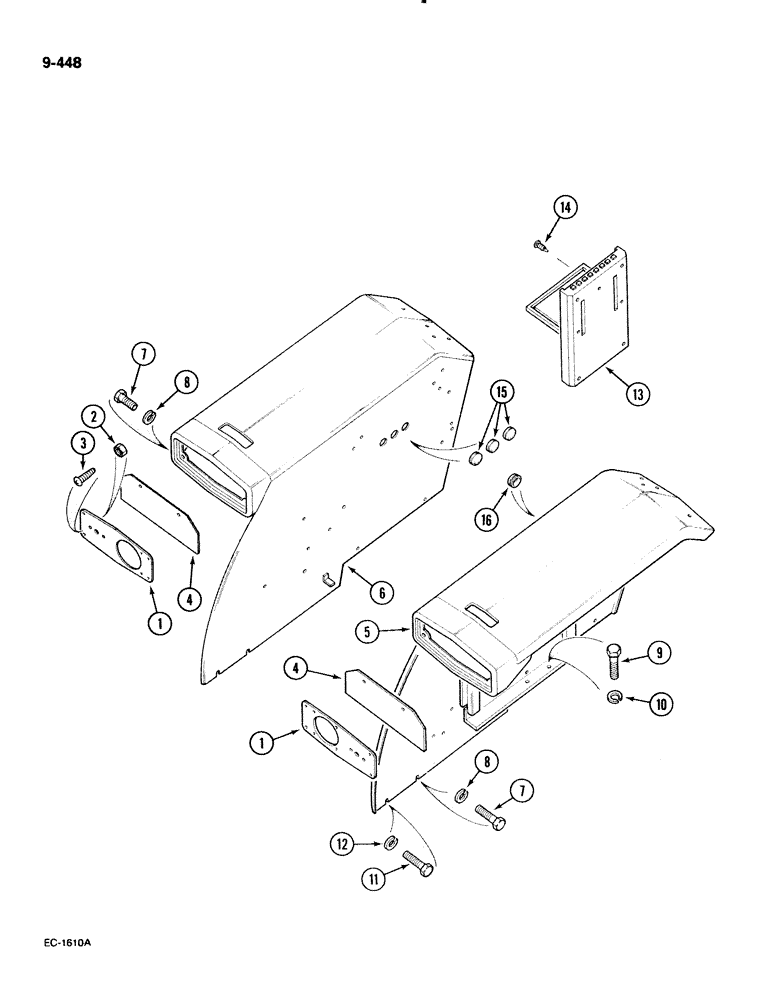

Запчасти Case IH 885 (9-448) - REAR FENDERS, FLAT TOP, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

3123652R3

PANEL

- light housing, front

2шт.

2

3123653R1

NUT

- captive, No. 6 type AB

8шт.

3

27571R1

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

SCREW - tapping, pan head, No. 6 x 1/2 inch

8шт.

4

3123654R1

SHIELD

- light weather

2шт.

5

3123648R5

FENDER ASSY.

FENDER - left, hi-flat top

1шт.

5

1288060C3

FENDER

- left, extra hi-flat top

1шт.

6

3123649R5

FENDER ASSY.

FENDER - right, hi-flat top

1шт.

6

1288061C3

FENDER

- right, extra hi-flat top

1шт.

7

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

rear top cover, hitch control cover Hex, 5/16"-18 x 1/2", G5, Full Thd

6шт.

7

180085

SPRING

- hex, 5/16 NC x 1-3/4 inch, grade 5, rear top cover

2шт.

8

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Rear top cover, Hitch controls cover 5/16"

8шт.

9

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT - hex, 1/2 NC x 1-1/4 inch, grade 5, axle carrier

4шт.

10

116121

LOCK WASHER,1/2"

WASHER, LOCK, , Axle carrier 1/2"

4шт.

11

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch, grade 5, parking brake carrier

2шт.

11

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5, parking brake carrier

1шт.

12

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Parking brake carrier 3/8"

3шт.

13

A177376

BOX

- operators manual storage

1шт.

14

A162364

FASTENER

- panel

3шт.

15

99964C1

PLUG

- blanking

6шт.

16

531625R1

GROMMET

2шт.
