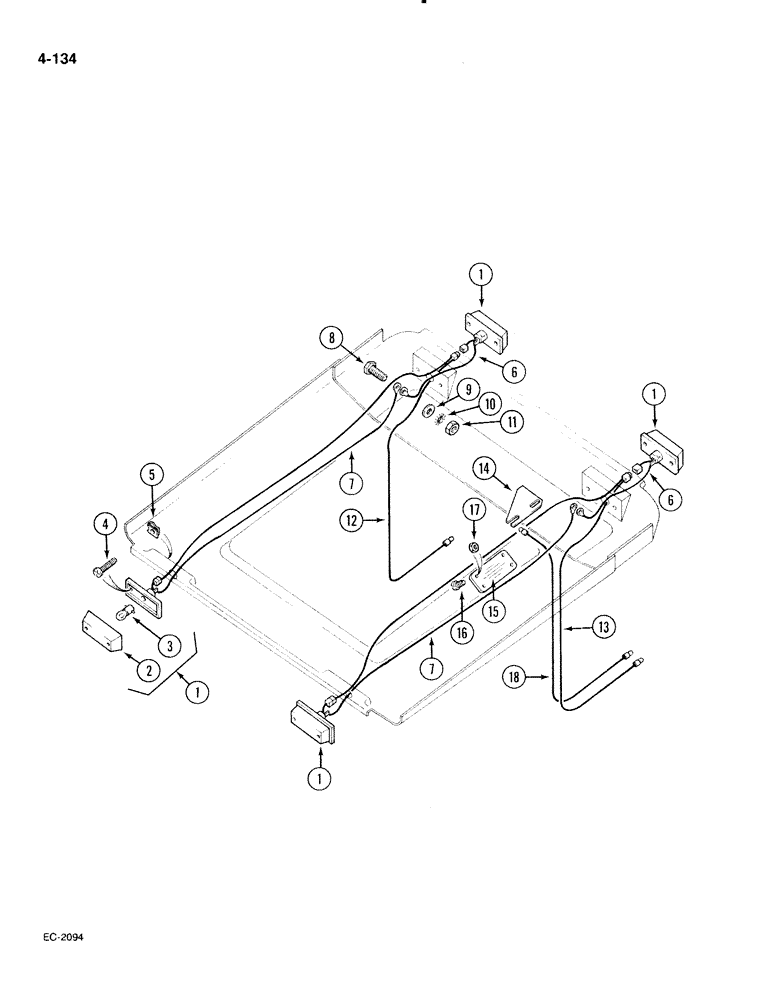

Запчасти Case IH 885 (4-134) - ROPS CANOPY WIRING AND LIGHTS (04) - ELECTRICAL SYSTEMS

1

130882C91

LAMP

LIGHT - warning, rear, Includes: Ref. 2 and 3

4шт.

2

130883C1

LENS

- amber

1шт.

3

9417866

BULB,C6, #1156, 12.8V

LAMP

1шт.

4

27619R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW - tapping, pan cross recess, No. 10 x 2-1/2 inch

8шт.

5

684322R1

SPRING NUT

- U-type spring

8шт.

6

111264C3

CABLE

- ground, rear lights

2шт.

7

118219C1

CABLE

- ground, front lights

2шт.

8

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

9

120391

WASHER,#10

- flat, 0.219 x 0.5 x 0.036 inch

2шт.

10

138479

PLUG

WASHER - lock, external tooth, No. 10

2шт.

11

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

12

118384C1

CABLE

- warning light, right

1шт.

13

118383C1

CABLE

- warning light, left

1шт.

14

118522C1

BRACKET

- radio mounting

1шт.

15

118258C1

PANEL

GRILLE - speaker

2шт.

16

28058R1

SCREW

- oval, cross recess machine No. 8 x 3/4 inch

8шт.

17

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, No. 8, with lock washer

8шт.

18

118523C2

CABLE

- radio power

1шт.
