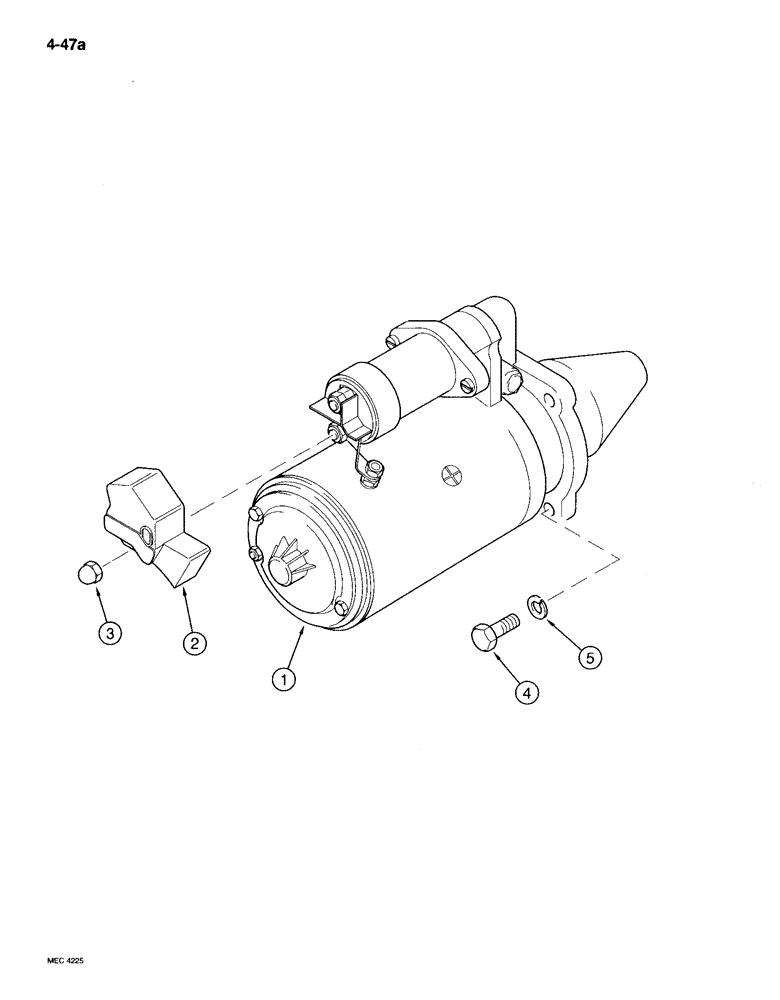

Запчасти Case IH 895 (4-47A) - STARTER MOTOR, MAGNETI-MARELLI (04) - ELECTRICAL SYSTEMS

121449A1

PACKAGE

KIT - starter motor, Includes: Refs. 1, 2, and 3

1шт.

1

114568A1

STARTING MOTOR

MOTOR - starting, 2.8 kw, 12 volt

1шт.

1

189330A5GV

STARTER MOTOR,12V, 2.8kW

Value

1шт.

1

189330A5R

REMAN-STARTER,12V, 2.8kW

Remanufactured Starter 12 volt, 2.8KW

1шт.

1

189330A5C

CORE-STARTER,12V, 2.8kW

Return Part Number, Starter 12 volt, 2.8KW

1шт.

2

114570A1

COVER

COVER - terminal

1шт.

3

114571A1

SPECIAL NUT

NUT - dome, nylon

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

5

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
