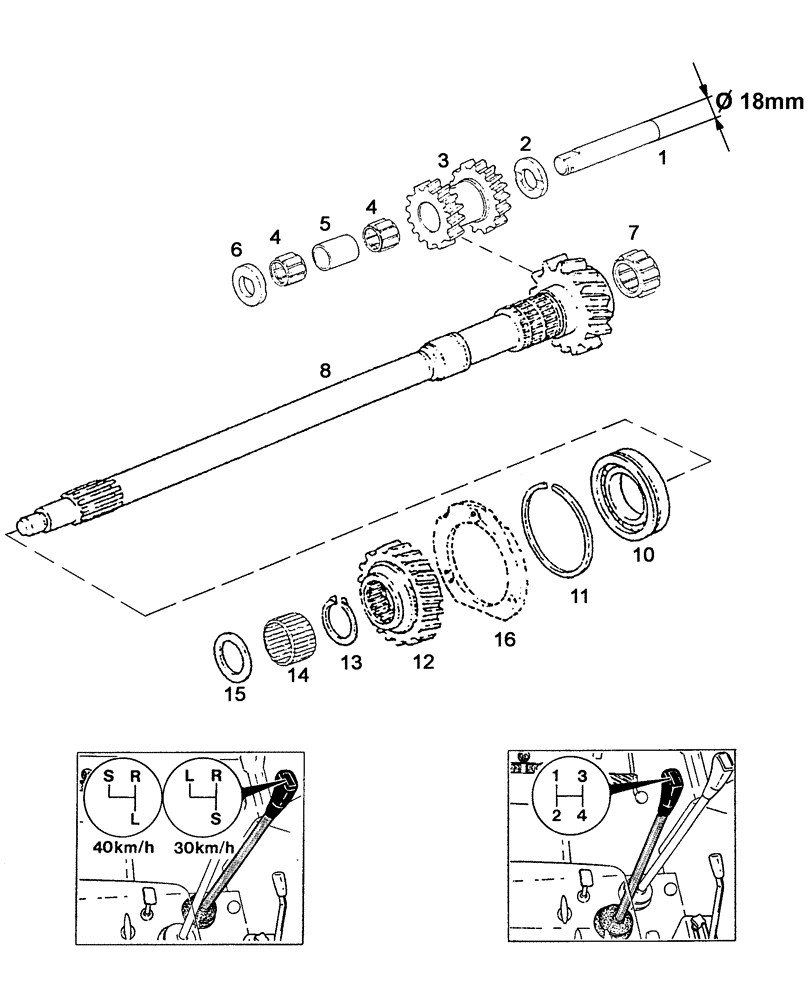

Запчасти Case IH C55 (06-22[01]) - SHAFT, DRIVE - TRANSMISSION (06) - POWER TRAIN

1

133700220151

PIVOT PIN

Ø=18mm

1шт.

2

133700220106

WASHER, THRUST

ID=18mm

1шт.

3

133700220175

WHEEL GEAR

19/24T

1шт.

4

133700220109

BEARING, NEEDLE

K18x24x20A

2шт.

5

133700220107

SPACER

1шт.

6

133700220349

WASHER, THRUST

1шт.

7

133700220029

NEEDLE BEARING

K28x40x25JM

1шт.

8

133700220402

DRIVE SHAFT

33T

1шт.

10

190003311127

BALL BEARING

1шт.

11

190003935363

LOCK WASHER

SP85

1шт.

12

133700220110

GEAR

31T, Ausführung/Version/Version/Type/Versione 30km/h

1шт.

12

133700220330

GEAR

37T, Ausführung/Version/Version/Type/Versione 40km/h

1шт.

13

190003933323

SNAP RING

42x2,5

1шт.

14

135700220001

NEEDLE BEARING

1шт.

15

190003070001

SEAL

1шт.

16

133700210035

RETAINER

Siehe Getriebegehäuse/See transmission housing/Voir carter de transmission/Se gearkassehus/Vedere scatola del cambio

1шт.
