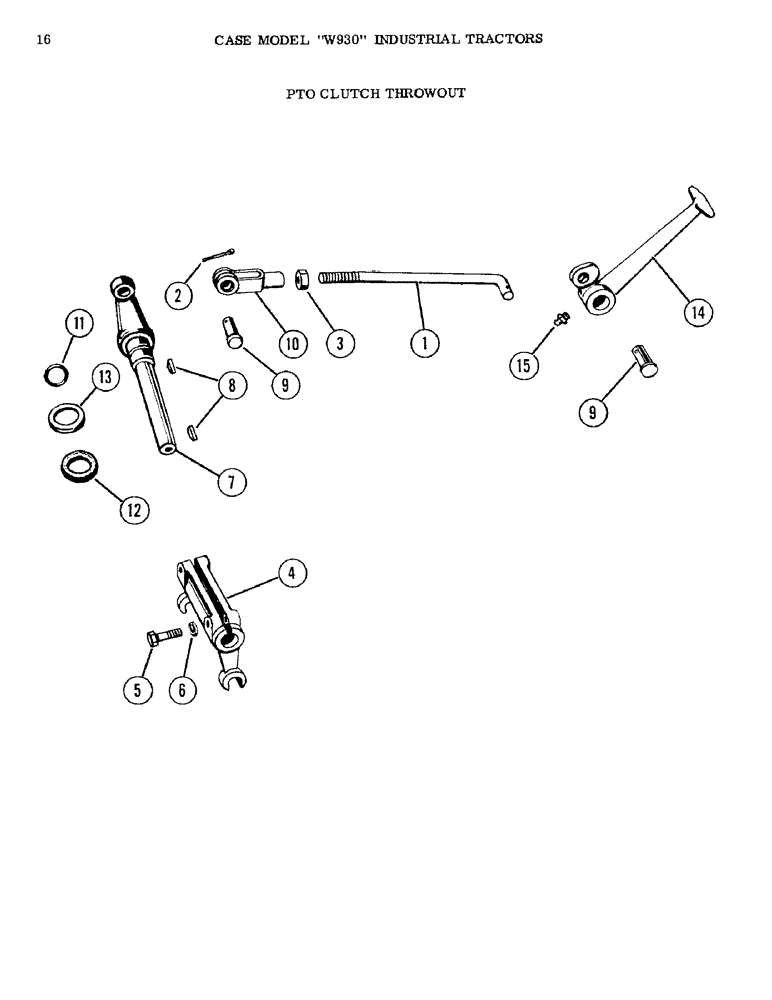

Запчасти Case IH W930 (16) - PTO CLUTCH THROWOUT (06) - POWER TRAIN

1

A8822

Rod - PTO clutch hand control

1шт.

2

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

3

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

A10417

Bracket - seat channel mounting w/throttle level support and PTO clutch lever mounting pin

1шт.

4

6143A

X

Yoke - PTO clutch throwout

1шт.

5

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" (NC) hex

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

4239AA

Shaft and arm - PTO clutch throwout

1шт.

8

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

2шт.

9

2499AB1

Pin - yoke for PTO clutch

2шт.

10

2701AB

End yoke - PTO clutch hand control rod

1шт.

11

8416AB

"O" ring - PTO clutch throwout shaft

1шт.

12

9052AB

Washer - felt PTO clutch throwout shaft

1шт.

13

9053AB

Retainer - felt washer

1шт.

14

A22951

X

Lever - PTO clutch hand

1шт.

15

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Lincoln 90º, 1/8" NPT x .84" lg

1шт.

9639AB

"E" ring - retainer for PTO clutch hand lever mounting pin, on A10417 bracket

1шт.

A22315

Chain, hydraulic pump drive (1000 RPM), hydraulic control unit main housing and pump drive (page 109-catalog no.678)

1шт.

8435AB

Chain, hydraulic pump drive (540 RPM), hydraulic control unit main housing and pump drive (page 109-catalog no.678)

1шт.

B12475

CHAIN (AG)

Chain (Not used), hydraulic control unit main housing and pump drive (page 109-catalog no. 678)

1шт.

B12476

CHAIN (AG)

Chain (Not used), hydraulic control unit main housing and pump drive (page 109-catalog no. 678)

1шт.

B12477

CHAIN (AG)

Chain (Not used), hydraulic control unit main housing and pump drive (page 109-catalog no. 678)

1шт.

B12505

LINK

(Not used), hydraulic control unit main housing and pump drive (page 109-catalog no. 678)

1шт.

B12506

LINK

(Not used), hydraulic control unit main housing and pump drive (page 109-catalog no. 678)

1шт.

B12507

CHAIN (AG)

Link (Not used), hydraulic control unit main housing and pump drive (page 109-catalog no. 678)

1шт.
