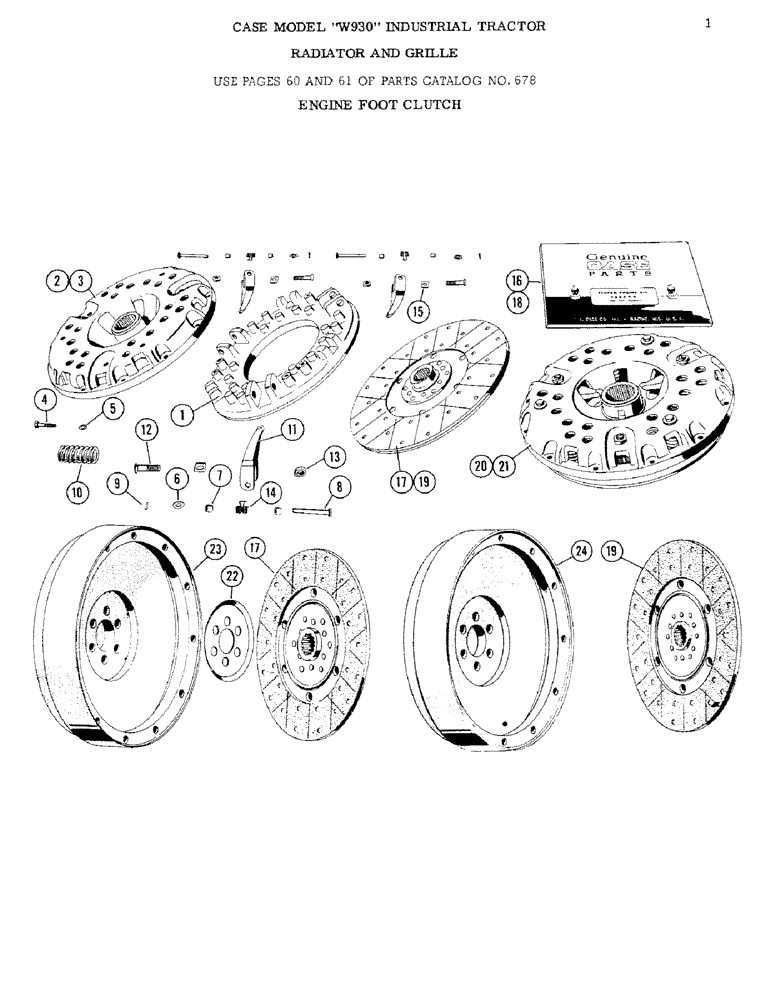

Запчасти Case IH W930 (01) - RADIATOR AND GRILLE, USE PAGES 60 AND 61 OF PARTS CATALOG NO. 678 ENGINE FOOT CLUTCH (02) - ENGINE

1

6295A

Plate - clutch pressure

1шт.

Part of P/N 4659AA Clutch

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

2

6296A

Plate - clutch cover, Serial Range: -8172001

1шт.

3

A21833

Plate - clutch cover, Start Serial: 8172001

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex

12шт.

5

92-6

LOCK WASHER,3/8"

12шт.

6

3280A

Washer - clutch release lever pin

3шт.

Part of P/N 4659AA Clutch

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

7

8087AB

Needle bearing - clutch release lever pin

6шт.

Part of P/N 4659AA Clutch

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

8

8090AB

Pin - clutch release lever

3шт.

Part of P/N 4659AA Clutch

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

9

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

3шт.

10

8095AB

Spring - clutch pressure

24шт.

Part of P/N 4659AA Clutch

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

11

10000AB

Lever - clutch release

3шт.

Part of P/N 4659AA Clutch

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

12

10001AB

Screw - clutch release lever adjusting

3шт.

Part of P/N 4659AA Clutch

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

13

35-159

Nut - 9/16" N.F. hex. jam

3шт.

Part of P/N 4659AA Clutch

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

14

10002AB

Spring - lock, clutch release lever adjusting screw

3шт.

Part of P/N 4659AA Clutch

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

15

10003AB

Block - clutch release lever

3шт.

Part of P/N 4659AA Clutch

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

16

4355AA

Facings - set of (2) clutch with rivets for 4576AA clutch drive plate, Serial Range: -8172001

1шт.

17

4576AA

X

Plate - clutch drive assembly with facings, Serial Range: -8172001

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

Part of P/N A21832 Clutch

1шт.

18

A22899

SPARE PART

Facings - set of (2) clutch with rivets for A22895 clutch drive plate, Start Serial: 8172001

1шт.

19

A22895

LARGE PLATE

Plate - clutch drive, assembly with facings, Start Serial: 8172001

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

Part of P/N A21832 Clutch

1шт.

20

4659AA

X

Clutch, complete less 4576AA drive plate, Consists of Refs. 1, 6, 7, 8, 10, 11, 12, 13, 14, and 15, Serial Range: -8172001

1шт.

21

A21832

CLUTCH

complete less A22895 drive plate, Consists of Refs. 17, 19, 22, 23 and 24, Start Serial: 8172001

1шт.

22

A22735

Deflector - flywheel oil, Serial Range: -8172001

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

Part of P/N A21832 Clutch

1шт.

23

6318A

Flywheel, Serial Range: -8172001

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

Part of P/N A21832 Clutch

1шт.

24

A22896

Flywheel, Start Serial: 8172001

1шт.

When new clutch plate is required on tractors equipped with the 6318A Flywheel and flywheel is not equipped with oil deflector, A22735 Deflector should also be ordered.

1шт.

Part of P/N A21832 Clutch

1шт.
