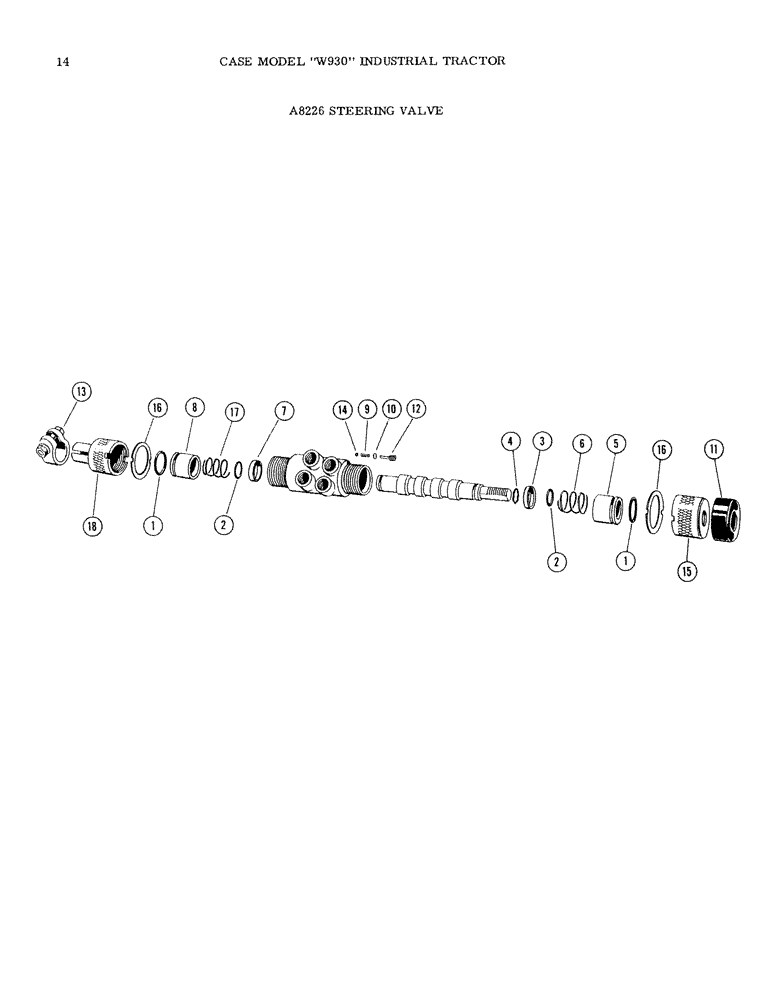

Запчасти Case IH W930 (14) - A8226 STEERING VALVE (05) - STEERING

1

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" ring - between gland and valve body

2шт.

2

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" ring - between valve spool and gland

2шт.

3

A10971

Ring - reaction, shaft end of clamp

1шт.

4

A10972

Washer - spacer, for A10971 reaction ring

1шт.

5

A10973

Gland - shaft end of valve

1шт.

6

A10974

Spring - shaft end of valve

1шт.

7

A10975

RING

- reaction, clamp end of valve

1шт.

8

A10976

Gland - clamp end of valve

1шт.

9

F5712

SPRING

- relie valve

1шт.

10

F5713

"O" ring - relief valve

1шт.

11

F5714

Seal - dust, end cover

1шт.

12

F75577

PLUG

- relief valve

1шт.

13

6476AB

Clamp

1шт.

14

8635AB

Ball - (1/4") relief valve

1шт.

15

3220CK

Cover - end

1шт.

16

3221CK

Lock ring - end covers

2шт.

17

3223CK

Spring - clamp end of valve

1шт.

18

3225CK

Cover - end, w/ reducer

1шт.
