(84.910.050) - BOOM ARM

Запчасти Case IH BHA102 (84.910.050) - BOOM ARM (84) - BOOMS, DIPPERS & BUCKETS

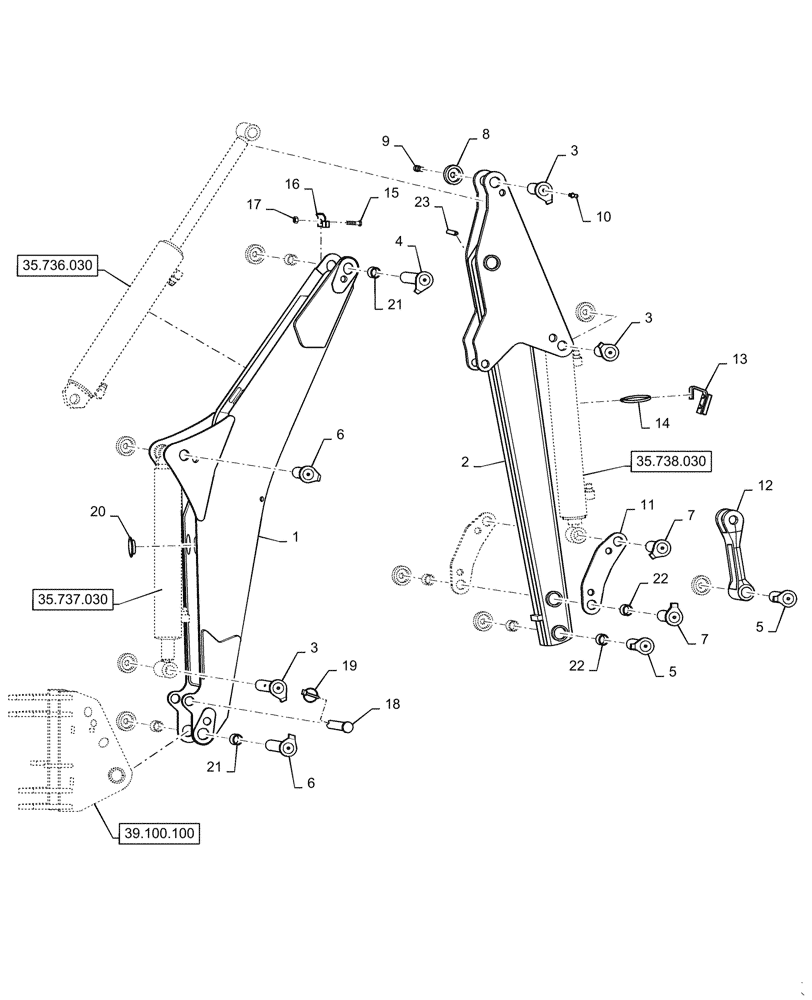

Схема запчастей Case IH BHA102 - (84.910.050) - BOOM ARM (84) - BOOMS, DIPPERS & BUCKETS
39.100.100
6
8
7
19
3
7
14
13
21
1
12
15
22
6
23
20
3
5
21
2
22
10
3
17
5
9
18
4
11
16
35.736.030
35.737.030
35.738.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR6100033C

BEAM

Lower

1шт.

2

LDR6100043C

BEAM

Upper

1шт.

3

LDR9020110

PIN,30mm OD x 105mm L

3шт.

4

LDR9020112

PIN,35mm OD x 167mm L

1шт.

5

LDR9020034

PIVOT PIN,30mm OD x 127mm L

2шт.

6

LDR9020120

PIN,30mm OD x 147mm L

2шт.

7

LDR9020105

PIN,30mm OD x 113mm L

2шт.

8

LDR5215131

CAP,Locking Cover

10шт.

9

LDR5004917

SCREW,MC6S

10шт.

10

LDR5023005

LUBE NIPPLE

Grease Fitting

10шт.

11

LDR6100350C

LINKAGE

Bucket, Bracket

1шт.

12

LDR5221361C

LINK

Bucket

1шт.

13

LDR6100307

HOLDER

1шт.

14

LDR6100373

HOSE CLAMP

Hydraulic Cylinder

1шт.

15

LDR5002055

SCREW

M8 x 40mm L

1шт.

16

LDR60001839

BRACKET

1шт.

17

LDR5011553

NUT,M8

1шт.

18

LDR6100348

PIN

Locking

1шт.

19

LDR5017002

LINCH PIN

Lock Pin

1шт.

20

LDR5221962

COVER

Hydraulic Hose

4шт.

21

LDR5018514

BUSHING,35mm L

4шт.

22

LDR5018515

BUSHING,30mm L

4шт.

23

LDR60004494

COVER

Hydraulic Hose, Protective

1шт.
