(35.359.030[02]) - MAIN HYDRAULIC VALVE (ASN YGWLI5011)

Запчасти Case IH BHA90 (35.359.030[02]) - MAIN HYDRAULIC VALVE (ASN YGWLI5011) (35) - HYDRAULIC SYSTEMS

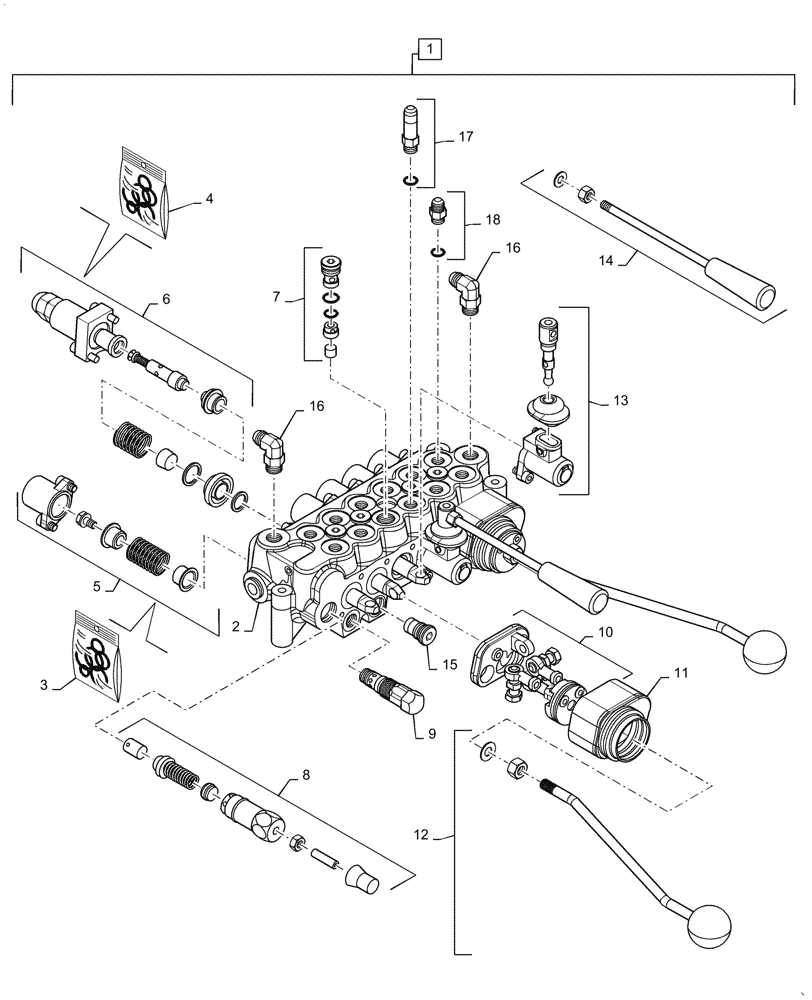

Схема запчастей Case IH BHA90 - (35.359.030[02]) - MAIN HYDRAULIC VALVE (ASN YGWLI5011) (35) - HYDRAULIC SYSTEMS
12
11
14
8
17
13
18
16
4
15
5
10
1
3
16
9
7
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR60007444

CONTROL VALVE

Assy, Incl 2 - 18

1шт.

2

LDR60007445

VALVE

Block

1шт.

3

LDR4500023

SEAL KIT

Control Unit, Services 5

5шт.

4

LDR4500037

SEAL KIT

Control Unit, Services 6

1шт.

5

LDR4500020

CONTROL UNIT

Spool

5шт.

6

LDR4500026

CONTROL UNIT

Spool

1шт.

7

LDR4500021

HYDRAULIC VALVE

Plug

5шт.

8

LDR4500047

VALVE

150bar

1шт.

9

LDR4500048

VALVE

160bar

1шт.

10

LDR4500022

JOYSTICK

Controller

2шт.

11

LDR4500008

COVER

Bellow, Joystick Controller

2шт.

12

LDR4500043

LEVER

Control, Joystick

2шт.

13

LDR4500044

CONTROL BLOCK

Joystick

2шт.

14

LDR4500045

LEVER

Control

2шт.

15

LDR4500046

PLUG

Kit

1шт.

16

LDR5028162

ADAPTER

Hydraulic, 90 Degree

2шт.

17

LDR5028176

ADAPTER

Hydraulic

6шт.

18

LDR5028118

ADAPTER

9/16" JIC

6шт.
