(35.703.011) - STABILIZER HYDRAULIC CYLINDER

Запчасти Case IH BHA90 (35.703.011) - STABILIZER HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

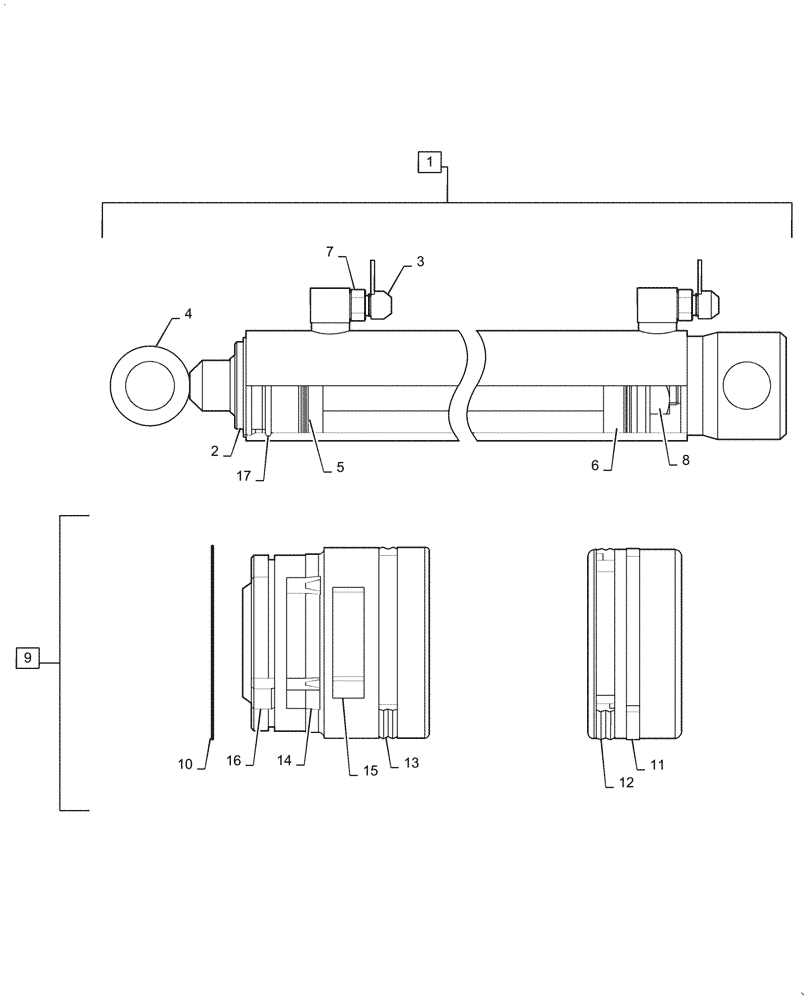

Схема запчастей Case IH BHA90 - (35.703.011) - STABILIZER HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
8
6
13
17
1
9
11
15
5
7
16
2
4
3
14
12
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR12725410

HYDRAULIC CYLINDER

Stabilizer, Incl 2 - 8, 10 - 17

1шт.

2

LDR5016608

RING

Retaining

1шт.

3

LDR5028083

PLUG

Shipping

2шт.

4

LDR12725413

PISTON ROD

1шт.

5

LDR12716111

GLAND,Bearing

1шт.

6

LDR12706712

PISTON

Hydraulic Cylinder

1шт.

7

LDR5028118

ADAPTER

9/16" UNF JIC

2шт.

8

LDR5011930

NUT,M24

1шт.

9

LDR5034115

SEAL KIT

Services 1, Contains 7 Seals, Incl 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

O - Ring, 58.74mm ID x 3.53mm Thk, Incl in 1, 9

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring, 60mm ID x 65mm OD x 5.5mm Thk, Incl in 1, 9

1шт.

12

NSS

NOT SOLD SEPARAT

Piston Seal, 49.5mm ID x 65mm OD x 6.3mm Thk, Incl in 1, 9

1шт.

13

NSS

NOT SOLD SEPARAT

Cover Seal, 59.6mm ID x 65mm OD x 6.2mm Thk, Incl in 1, 9

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, 31mm ID x 43mm OD x 10mm Thk, Incl in 1, 9

1шт.

15

NSS

NOT SOLD SEPARAT

Guide Ring, 35mm ID x 9.6mm Thk, Incl in 1, 9

1шт.

16

NSS

NOT SOLD SEPARAT

Wiper, 31mm ID x 42mm OD x 10mm Thk, Incl in 1, 9

1шт.

17

LDR5016668

RING

Retaining

1шт.
