(35.738.020) - HYDRAULIC BUCKET CYLINDER

Запчасти Case IH BHA90 (35.738.020) - HYDRAULIC BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

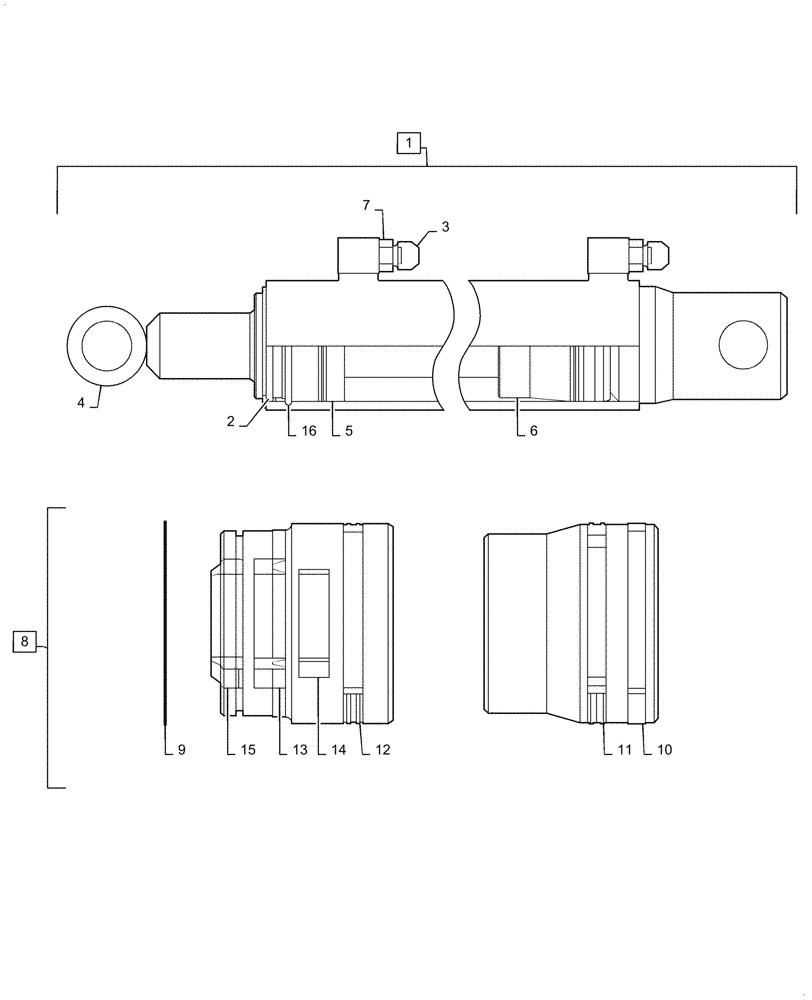

Схема запчастей Case IH BHA90 - (35.738.020) - HYDRAULIC BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS
3
4
1
8
12
11
5
13
14
16
2
6
9
7
10
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR12722810

CYLINDER BLOCK

Bucket Lift, Incl 2 - 7, 9 - 16

1шт.

2

LDR5016669

RING

Retaining

1шт.

3

LDR5028083

PLUG

Shipping

2шт.

4

LDR12722813

PISTON ROD

Cylinder

1шт.

5

LDR12707011

BEARING

Piston Rod

1шт.

6

LDR12707012

PISTON

Hydraulic Cylinder

1шт.

7

LDR5028118

ADAPTER

9/16" UNF JIC

2шт.

8

LDR5033704

SEAL KIT

Services 1, Contains 7 Seals, Incl 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

O - Ring, 63.09mm ID x 3.53mm Thk, Incl in 1, 8

1шт.

10

NSS

NOT SOLD SEPARAT

Guide Ring, 65mm ID x 70mm OD x 5.5mm Thk, Incl in 1, 8

1шт.

11

NSS

NOT SOLD SEPARAT

Piston Seal, 54.5mm ID x 70mm OD x 6.3mm Thk, Incl in 1, 8

1шт.

12

NSS

NOT SOLD SEPARAT

Cover Seal, 64.6mm ID x 70mm OD x 6.2mm Thk, Incl in 1, 8

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 8

1шт.

14

NSS

NOT SOLD SEPARAT

Guide Ring, 40mm ID x 45mm OD x 9.7mm Thk, Incl in 1, 8

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 8

1шт.

16

LDR5016621

RING

Retaining

1шт.
