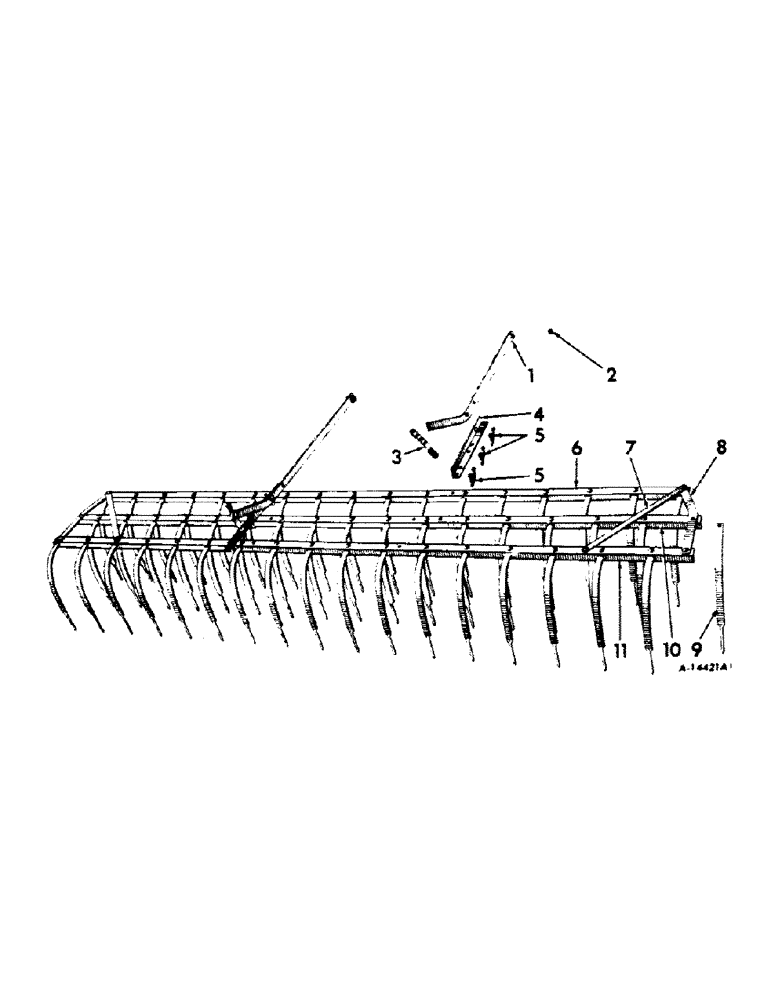

Запчасти Case IH F-144 (B-33) - WEEDER MULCHER, WITH NON FAST-HITCH REAR SECTION

1

511929R1

RAIL, hitch left

1шт.

1

511930R1

RAIL, hitch right

1шт.

BOLT, 5/8 x 1-1/4 in. mach

2шт.

WASHER, 21/32 x 1-1/2 in. x 16 ga

2шт.

2

516811R1

PIVOT, hitch bolt

1шт.

3

PO27697

STRAP, hitch leveling

1шт.

BOLT, 7/16 x 1 in. mach

2шт.

4

511928R1

ANGLE, hitch

1шт.

BOLT, 7/16 x 1 in. crg

4шт.

5

PO27695AX

U-BOLT W/NUTS, attaching angle

1шт.

NUT, 3/8 in. square

2шт.

WASHER, 3/8 in. lock

2шт.

6

PO28676

ANGLE, frame front

1шт.

7

PO28675

BRACE, diagonal

1шт.

BOLT, 3/8 x 7/8 in. crg

1шт.

BOLT, 3/8 x 1 in. crg

3шт.

WASHER, 3/8 in. lock

4шт.

8

PO27684

BRACE, frame angle end

1шт.

BOLT, 3/8 x 7/8 in. crg

2шт.

BOLT, 3/8 x 1 in. crg

2шт.

WASHER, 3/8 in. lock

4шт.

9

16448B

SPRING

TOOTH, weeder

1шт.

BOLT, 3/8 x 7/8 in. mach

1шт.

WASHER, 3/8 in. lock

1шт.

10

PO28677

ANGLE, frame center

1шт.

11

PO28678

ANGLE, frame rear

1шт.
