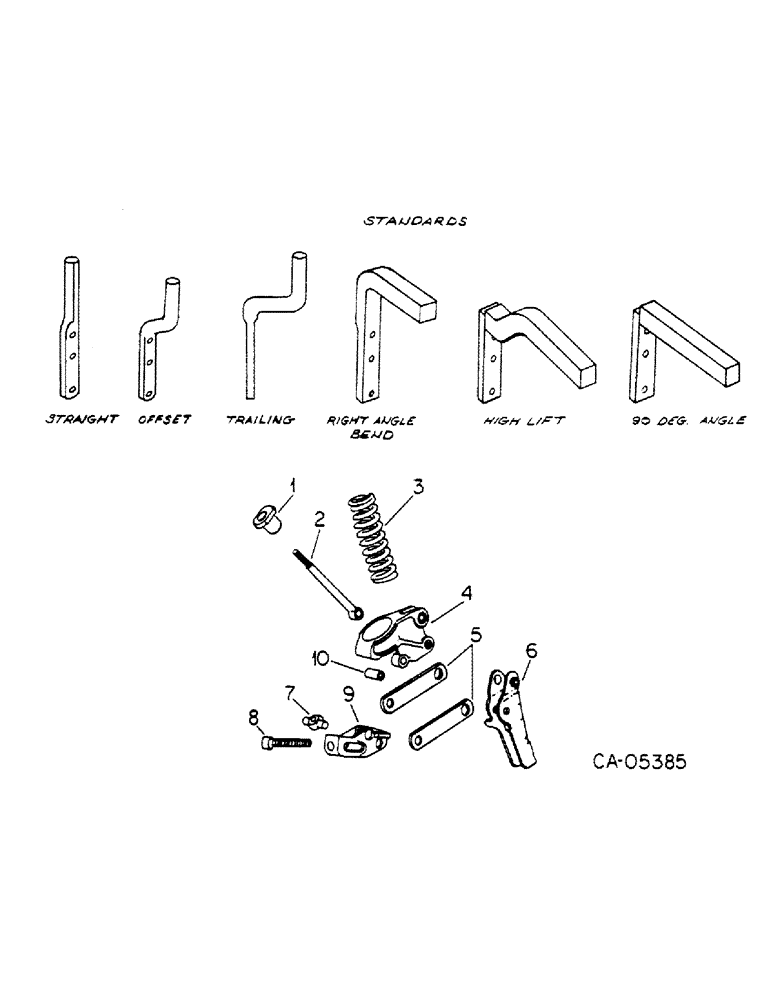

Запчасти Case IH F-144 (B-44) - NUMBER 16 TYPE SPRING TRIPS

1

5105BB

NUT

WASHER, spring

1шт.

2

27018BB

ROD, spring

1шт.

IH104201

RIVET,Csk, 3/8" x 1 1/2"

3/8 x 1-1/2 90 deg csk-hd solid

1шт.

3

15282BA

SPRING

1-11/16 OD, 5-1/4 long, 10-1/4 coils

1шт.

4

1694BA

BRACKET

spring

1шт.

45-728

RIVET,But Hd, 7/16" x 1 3/4"

7/16 x 1-3/4 rd-hd

2шт.

5

27016BA

STRIP

STRAP

2шт.

135203

RIVET,Csk, 7/16" x 3/4"

7/16 x 3/4 C-Z 90 deg csk-hd solid

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

6

30811B

SHANK

slotted

1шт.

30813B

RIVET

1/2 x 1-3/8 std-pin-hd

1шт.

7

27017B

PIVOT

TRUNION

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.

8

27015BX

BOLT,Adj, Hex, 1/2" - 13 x 2 3/4", Drilled

W/NUT, adjusting

1шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 C-Z slt hex.

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

9

1695BA

YOKE

adjusting

1шт.

46-724

RIVET,Csk, 7/16" x 1 1/2"

7/16 x 1-1/2 90 deg csk-hd solid

1шт.

10

27326BA

SPACER

BUSHING

1шт.

27024BA

SPRING TRIP, 1-7/16 in. round x 14-1/2 in. straight, std. no. 27021B

1шт.

29658BA

SPRING TRIP, 1-7/16 in. round x 12 in. 2 in. right offset, std. no. 29657B

1шт.

29659BA

SPRING TRIP, 1-7/16 in. round x 12 in. 2 in. left offset, std. no. 29657B

1шт.

29924BB

TRIP

SPRING TRIP, 1-1/4 in. round x 11-1/4 in., straight, std. no. 29932BA

1шт.

29661BA

SPRING TRIP, 1-7/16 in. round x 11-3/4 in., straight, std. no. 29660B

1шт.

518017R91

TRIP

SPRING TRIP, 1-7/16 in. round x 26-1/4 in., straight, std. no. 518057R1, heat treated

1шт.

518279R91

SPRING TRIP, 1-1/4 in. square, 6-3/4 in. right angle bend, left, std. no. 518288R1, heat treated

1шт.

518280R91

SPRING TRIP, 1-1/4 in. square, 6-3/4 in. right angle bend, right, std. no. 518288R1, heat treated

1шт.

518283R92

TRIP

SPRING TRIP, 1-1/4 in. round x 12-3/4 in., straight, std. no. 518285R2, heat treated

1шт.

518284R91

TRIP

SPRING TRIP, 1-1/4 in. round x 15-3/4 in., straight, std. no. 518286R1, heat treated

1шт.

519899R91

TRIP

SPRING TRIP, 1-1/4 in. round x 13-1/4 in., 1 in. left offset, std. no. 519902R1, heat treated

1шт.

519900R91

TRIP

SPRING TRIP, 1-1/4 in. round x 13-1/4 in., 1 in. right offset, std. no. 519902R1, heat treated

1шт.

521137R91

SPRING TRIP, 1-1/4 in. round x 15-3/4 in., 2 in. left offset, std. no. 521326R1

1шт.

521138R91

SPRING TRIP, 1-1/4 in. round x 15-3/4 in., 2 in. right offset, std. no. 521326R1

1шт.

521139R91

SPRING TRIP, 1-1/4 in. round x 15-3/4 in., 3 in. left offset, std. no. 521327R1

1шт.

521140R91

SPRING TRIP, 1-1/4 in. round x 15-3/4 in., 3 in. right offset, std. no. 521327R1

1шт.

521133R91

SPRING TRIP, 1-1/4 in. round x 15-3/4 in., trailing, std., no. 521328R1

1шт.

522651R92

SPRING TRIP, 1-1/4 in. square, 8-1/4 in. right angle bend, left, std. no. 522649C2, heat treated

1шт.

522652R92

SPRING TRIP, 1-1/4 in. square, 8-1/4 in. right angle bend, left, std. no. 522649R2, heat treated

1шт.

523425R91

TRIP

SPRING TRIP, 1-1/4 in. round x 12-3/4 in. 2 in., left offset, std. no. 523427R1, heat treated

1шт.

523426R91

TRIP

SPRING TRIP, 1-1/4 in. round x 12-3/4 in., 2 in., right offset, std. no. 523427R1, heat treated

1шт.

489657R91

SPRING TRIP, 1-1/4 in. round x 10-1/2 in., straight, std. no. 489729R1, heat treated

1шт.
