(58.910.AD[07]) - VAR - 717966176 - MOWER DECK CUTTER (ASN YDWWL5001)

Запчасти Case IH MW166S (58.910.AD[07]) - VAR - 717966176 - MOWER DECK CUTTER (ASN YDWWL5001) (58) - ATTACHMENTS/HEADERS

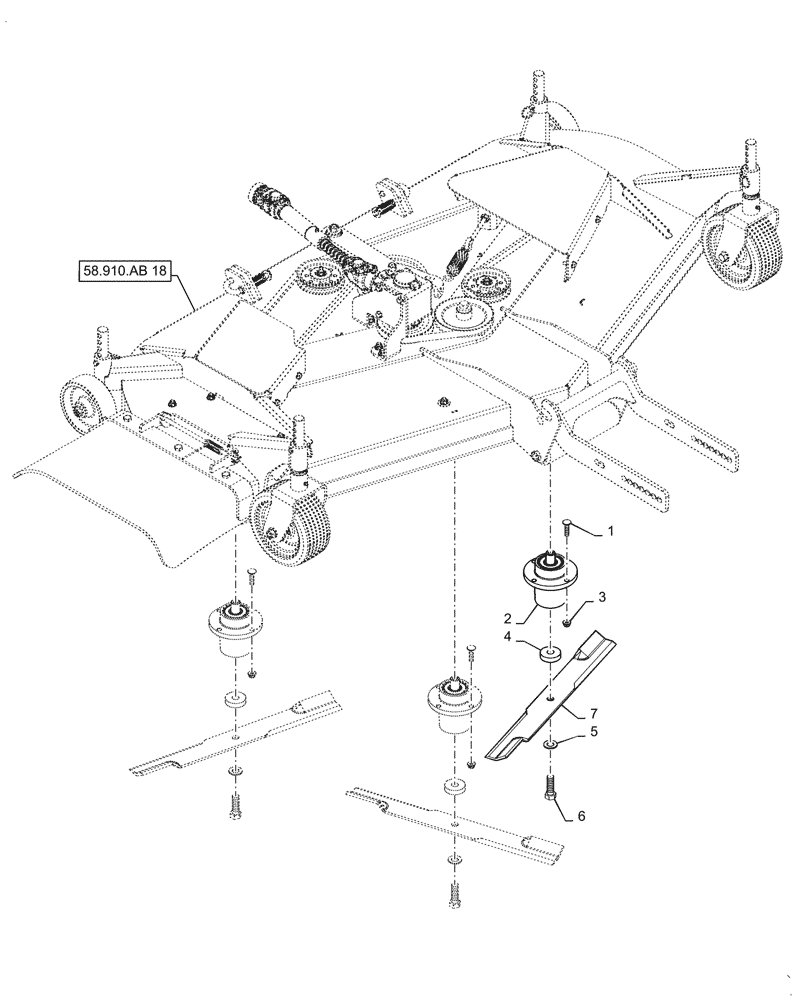

Схема запчастей Case IH MW166S - (58.910.AD[07]) - VAR - 717966176 - MOWER DECK CUTTER (ASN YDWWL5001) (58) - ATTACHMENTS/HEADERS
58.910.ab 18
6
5
1
3
2
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME006616B

BOLT,3/8" - 16 x 1.5" L, Gr 5

12шт.

2

AME050012B

SPINDLE

Assy

3шт.

3

AME007457B

LOCK NUT,3/8" - 16

Nylon

12шт.

4

AME066078B

SPACER

Blade, 1/2" Thk

3шт.

5

AME008178B

WASHER,5/8" ID

3шт.

6

AME007132B

BOLT,5/8" - 18 x 2" L, Gr 8

3шт.

7

AME050003B

BLADE

Mower, 23" L

3шт.
