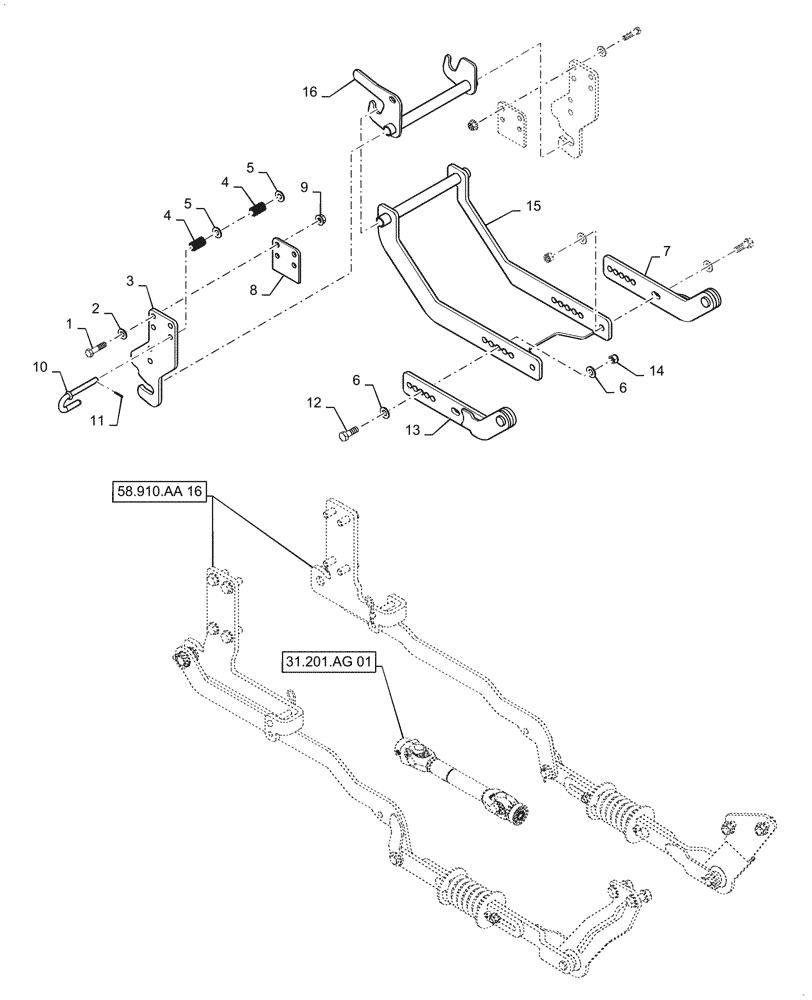

Запчасти Case IH MW172S (58.910.AA[15]) - VAR - 717966146, 717966156 - MOWER DECK MOUNTING PARTS, CVT 72" CL 3 (58) - ATTACHMENTS/HEADERS

1

AME007041B

BOLT,1/2" - 20 x 2" L, Gr 5

8шт.

2

AME008164B

WASHER,1/2" ID

8шт.

3

AME452218B

PLATE

Front Mount Hanger

2шт.

4

AME008675B

COMPRESSION SPRING

J - Latch

2шт.

5

AME008173B

WASHER,1/2" ID

2шт.

6

AME008176B

WASHER,9/16" ID

8шт.

7

AME452290B

LOWER LINK

RH

1шт.

8

AME452217B

PLATE

Spacer

2шт.

9

AME007514B

NUT,1/2" - 20

Nylon - Lock

8шт.

10

AME066073B

LATCH

J

1шт.

11

AME008554B

HAIR PIN COTTER,3/32" OD x 3/4" L

1шт.

12

AME018725B

BOLT,M14 x 2 x 40mm L, Gr 10.9

4шт.

13

AME452295B

LOWER LINK

LH

1шт.

14

AME007519B

NUT,M14 x 2mm Thk, Gr 10

Lock

4шт.

15

AME452310B

UPPER LINK

Mounting

1шт.

16

AME452215B

LATCH

Mounting

1шт.
