(C-8) - DRIVERS SHIELD, (SPECIAL) (FOR FARMALL C, 200, 230, 300, 350, 400 & 450 TRACTORS)

Запчасти Case IH 27 (C-8) - DRIVERS SHIELD, (SPECIAL) (FOR FARMALL C, 200, 230, 300, 350, 400 & 450 TRACTORS)

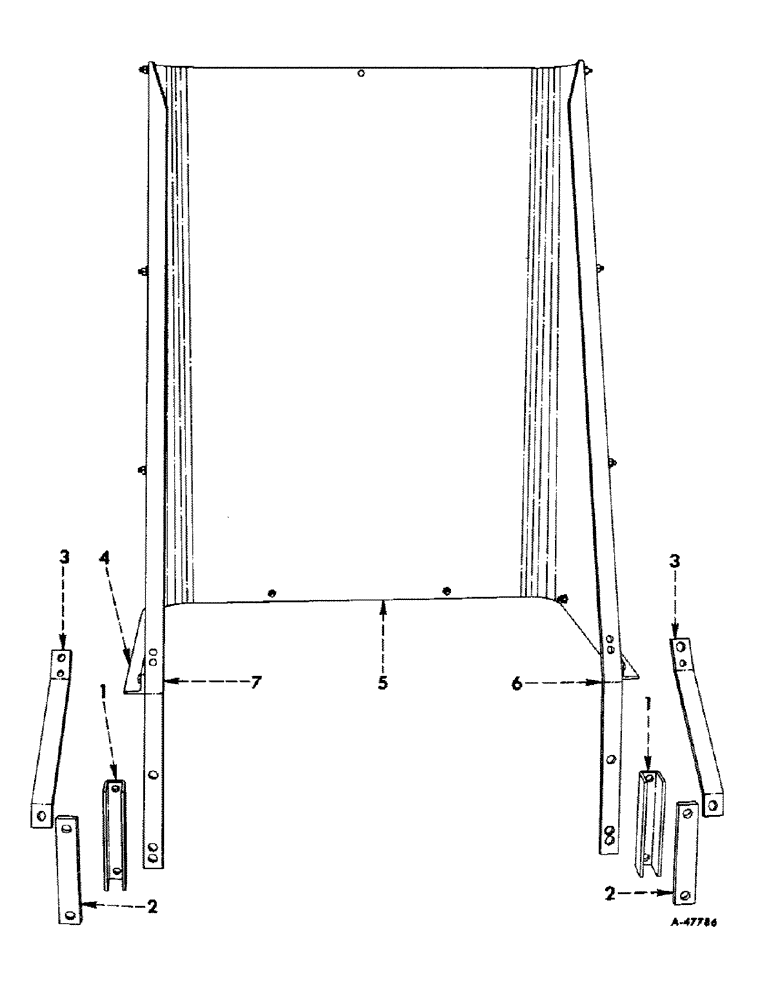

Схема запчастей Case IH 27 - (C-8) - DRIVERS SHIELD, (SPECIAL) (FOR FARMALL C, 200, 230, 300, 350, 400 & 450 TRACTORS)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

660310R92

DRIVERS SHIELD ATTACHMENT (special) (for Farmall C, 200, 230, 300, 350, 400 and 450 tractors)

1шт.

1

661877R1

SPACER, driver shield

2шт.

BOLT, 1/2" x 8-3/4" hex-hd. mach.

4шт.

NUT, 1/2"

4шт.

WASHER, 1/2" lock

4шт.

2

660422R1

STRAP, attaching

2шт.

3

660552R2

BRACE, drivers shield

2шт.

BOLT, 3/8 x 1" hex-hd. mach.

2шт.

NUT, 3/8"

2шт.

WASHER, 3/8" lock

2шт.

4

660424R2

BRACE, lower shield

1шт.

BOLT, 3/8 x 1 hex-hd. mach.

6шт.

NUT, 3/8"

6шт.

WASHER, 3/8" lock

6шт.

5

660427R1

SHIELD, driver

1шт.

6

660425R1

SUPPORT, left shield

1шт.

BOLT, 3/8 x 1" hex-hd. mach.

3шт.

NUT, 3/8"

3шт.

WASHER, 3/8" lock

3шт.

7

660426R1

SUPPORT, right shield

1шт.

BOLT, 3/8 x 1" hex-hd. mach.

3шт.

NUT, 3/8"

3шт.

WASHER, 3/8" lock washer

3шт.
