(6-02) - ENGINE CLUTCH, PRIOR TO P.I.N. 17657689

Запчасти Case IH 275 (6-02) - ENGINE CLUTCH, PRIOR TO P.I.N. 17657689 (06) - POWER TRAIN

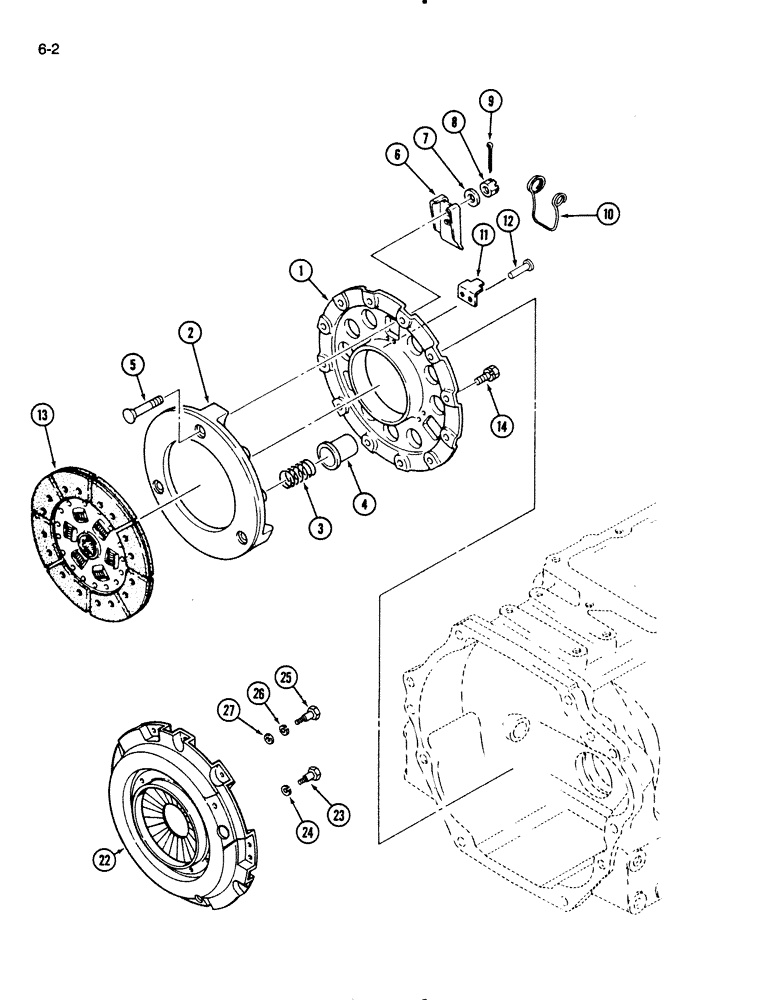

Схема запчастей Case IH 275 - (6-02) - ENGINE CLUTCH, PRIOR TO P.I.N. 17657689 (06) - POWER TRAIN
23
11
25
27
7
26
10
24
9
22
4
2
3
8
5
1
14
6
12
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1961931C1

PLATE ASSY.

PLATE ASSEMBLY - pressure, 8.5", Includes: Ref. 1 - 12

1шт.

1

1963589C1

COVER ASSY

COVER KIT - clutch, Includes: Ref. 11 & 12

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - pressure

1шт.

3

1963269C1

VALVE SPRING

SPRING KIT - pressure

1шт.

4

1963275C1

KIT

CAP KIT - pressure spring

1шт.

1963590C1

LEVER

LEVER KIT - release, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT - lever

3шт.

6

NSS

NOT SOLD SEPARAT

LEVER - release

3шт.

7

NSS

NOT SOLD SEPARAT

WASHER - yoke

3шт.

8

NSS

NOT SOLD SEPARAT

NUT - lever

3шт.

9

NSS

NOT SOLD SEPARAT

PIN - cotter

3шт.

10

NSS

NOT SOLD SEPARAT

SPRING - return

3шт.

11

NSS

NOT SOLD SEPARAT

SEAT - lever

3шт.

12

NSS

NOT SOLD SEPARAT

RIVET - seat

6шт.

13

1346882C1

CLUTCH DISC

CLUTCH DISK CLUTCH ASSEMBLY - disc (Replaces 1961930C1)

1шт.

1346882C1R

REMAN-CLUTCH DISC

275, Reman Clutch Disk Assembly, N.A. Only

1шт.

13

1346882C1C

CORE-CLUTCH DISC

Return Number, For N.A. Only

1шт.

14

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Bolt, Hex, M6 x 16, 8.8

10шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

10шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER, M6

10шт.

22

1963586C1

PLATE ASSY.

PLATE ASSEMBLY - pressure, engine clutch, 9", P.I.N. CCJ0028001 and after

1шт.

REF#22 - P/N 1963586C1 PRESSURE PLATE IS THE SAME FOR BOTH S/NS PER E-MAIL FROM JOHN CRAMER ON 6/2/97 CASE#421326. JBEDFORD 6/2/97.

1шт.

22

1963586C1R

REMAN-CLUTCH PLATE

275 CASE IH TRACTOR, PLATE ASSEMBLY, pressure, engine clutch, P.I.N. CCJ0028001 and after, PRIOR TO P.I.N. 17657689 (1/88-12/88)

1шт.

22

1963586C1C

CORE-CLUTCH PLATE

Return Number

1шт.

23

1273240C1

BOLT,Hex, M8 x 1.25 x 22mm

BOLT - hex, M8 x 22 mm, engine clutch, P.I.N. CCJ0028001 and after

2шт.

24

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm, Engine clutch, P.I.N. CCJ0028001 and after

2шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT, , Engine clutch, P.I.N. CCJ0028001 and after Hex, M8 x 25, 8.8

4шт.

26

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Engine clutch, P.I.N. CCJ0028001 and after M8

4шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

WASHER, , Engine clutch, P.I.N. CCJ0028001 and after M8 x 16 x 1.6

4шт.
