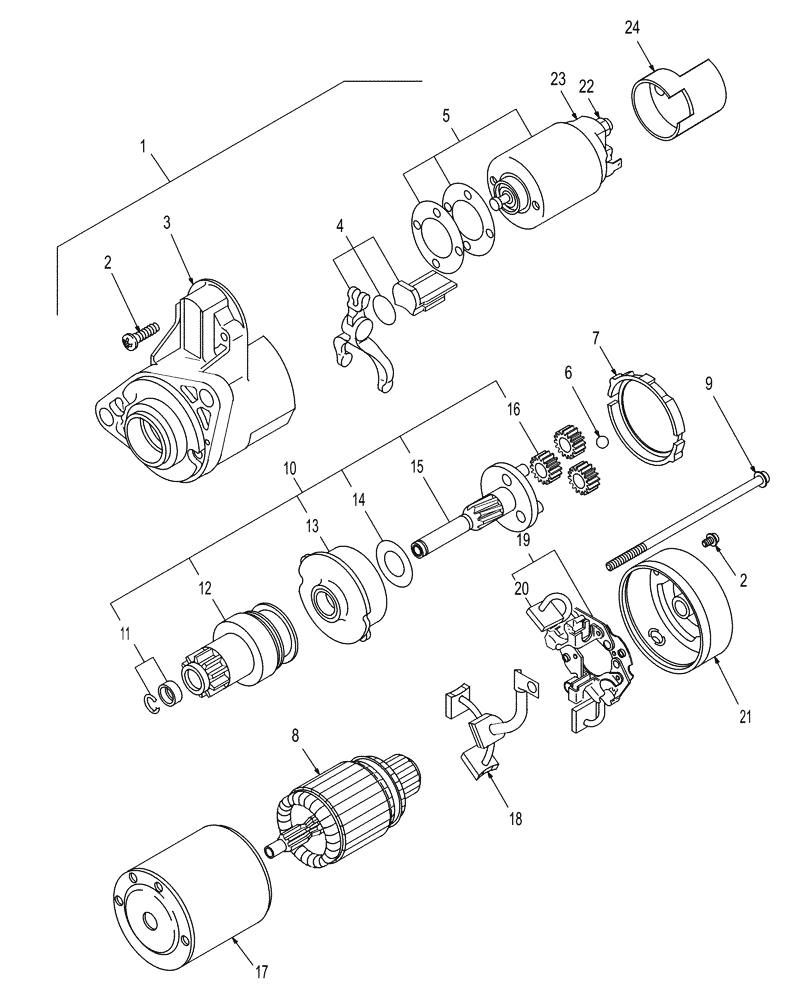

Запчасти Case IH DX31 (01.10) - STARTING MOTOR (01) - ENGINE

1

SBA185086551

STARTER MOTOR

Includes: Ref. 2 - 21

1шт.

2

SBA185846468

KIT

1шт.

3

SBA185846610

BRACKET

Front

1шт.

4

SBA185846615

LEVER

1шт.

5

SBA185816340

SOLENOID

1шт.

6

SBA185846616

BALL

1шт.

7

SBA185846617

RETAINER

1шт.

8

SBA185846618

ARMATURE

1шт.

9

SBA185846621

BOLT

Set

1шт.

10

SBA185866391

SHAFT

Clutch Set Includes: Ref. 11 - 16

1шт.

11

SBA185846614

PLUG

Set, Stopper

1шт.

12

SBA185866411

CLUTCH

Pinion

1шт.

13

SBA185846612

GEAR

Internal

1шт.

14

SBA185846611

WASHER

1шт.

15

SBA185866400

SHAFT

Shaft

1шт.

16

SBA185846613

GEAR

3шт.

17

SBA185846619

STATOR

1шт.

18

SBA185416490

COMMUTATOR BRUSH

1шт.

19

SBA185416500

BRUSH HOLDER

Includes: Ref. 20

1шт.

20

SBA185886070

SPRING

Set

1шт.

21

SBA185846620

COVER

Rear

1шт.

22

SBA020109160

NUT

Special

1шт.

23

SBA185736330

COVER

Shield

1шт.

24

SBA185736161

COVER

Starter

1шт.
