(03.04) - FRONT TRANSMISSION - UPPER

Запчасти Case IH DX48 (03.04) - FRONT TRANSMISSION - UPPER (03) - TRANSMISSION

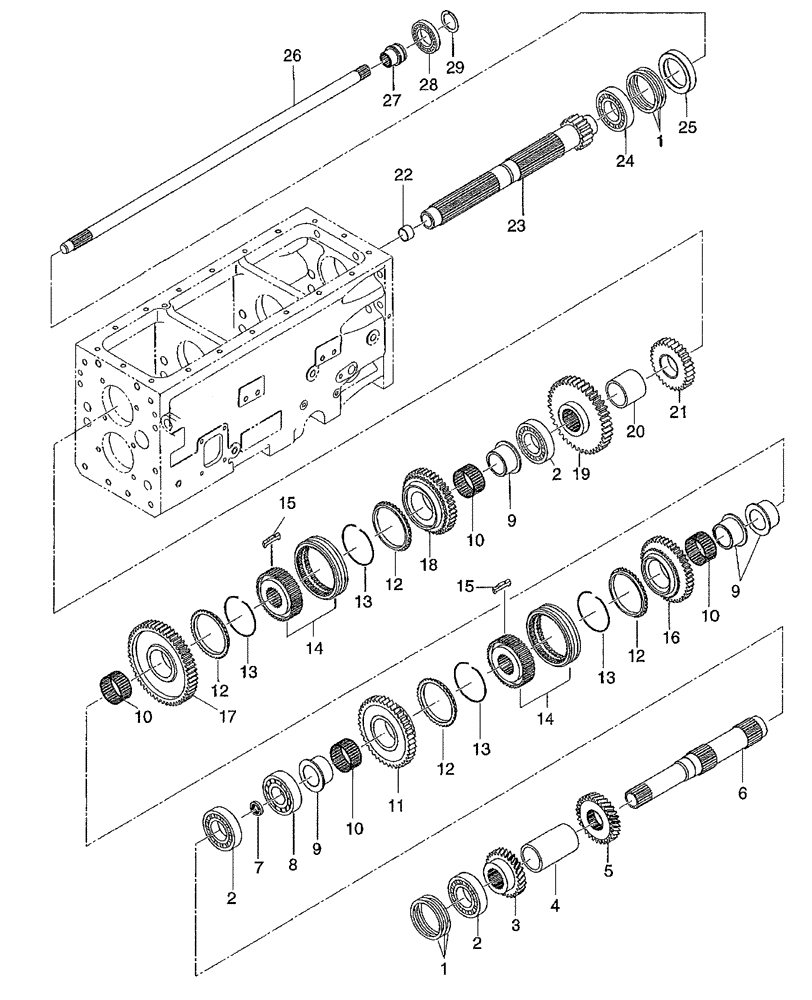

Схема запчастей Case IH DX48 - (03.04) - FRONT TRANSMISSION - UPPER (03) - TRANSMISSION
10
28
19
15
18
9
10
12
1
4
2
9
24
22
13
8
10
1
10
15
23
12
12
25
14
26
6
5
11
9
13
2
21
27
13
13
16
20
17
12
7
29
3
2
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA199280750

SHIM,0.1mm Thk

1шт.

1

SBA199280760

SHIM

.2 or 0.008"

1шт.

1

SBA199280770

SHIM

.5 or 0.020"

1шт.

2

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

1шт.

3

SBA322326660

GEAR

Fixing, A

1шт.

4

SBA399235880

COLLAR

1шт.

5

SBA322326650

GEAR

Fixing, A

1шт.

6

SBA322514320

SHAFT

Drive

1шт.

7

SBA050209099

OIL SEAL

1шт.

8

SBA040106307

BALL BEARING

2шт.

9

SBA322613270

COUPLING

4шт.

10

SBA042209006

BEARING ASSY

Needle

4шт.

11

SBA322383000

GEAR

Counter, B

1шт.

12

SBA322410061

RING

Synchronizer

4шт.

13

SBA398212470

SNAP RING

4шт.

14

SBA322031401

GEAR SET

2шт.

15

SBA322420040

KEY

3шт.

16

SBA322383010

GEAR

Counter, B

1шт.

17

SBA322382980

GEAR

Counter, B

1шт.

18

SBA322382990

GEAR

Counter, B

1шт.

19

SBA322326520

GEAR

Fixing, A

1шт.

20

SBA399233230

COLLAR

1шт.

21

SBA322324240

GEAR

Fixing A

1шт.

22

SBA398512080

BUSHING

1шт.

23

SBA322531930

SHAFT

Counter

1шт.

24

SBA040106208

RING

Bearing Ball

1шт.

25

SBA320190660

HOLDER

1шт.

26

SBA322514310

SHAFT

Drive

1шт.

27

SBA322613230

COUPLING

1шт.

28

SBA040109052

BALL BEARING,35mm ID x 62mm OD x 9mm W

1шт.

29

SBA036100035

SNAP RING

1шт.
