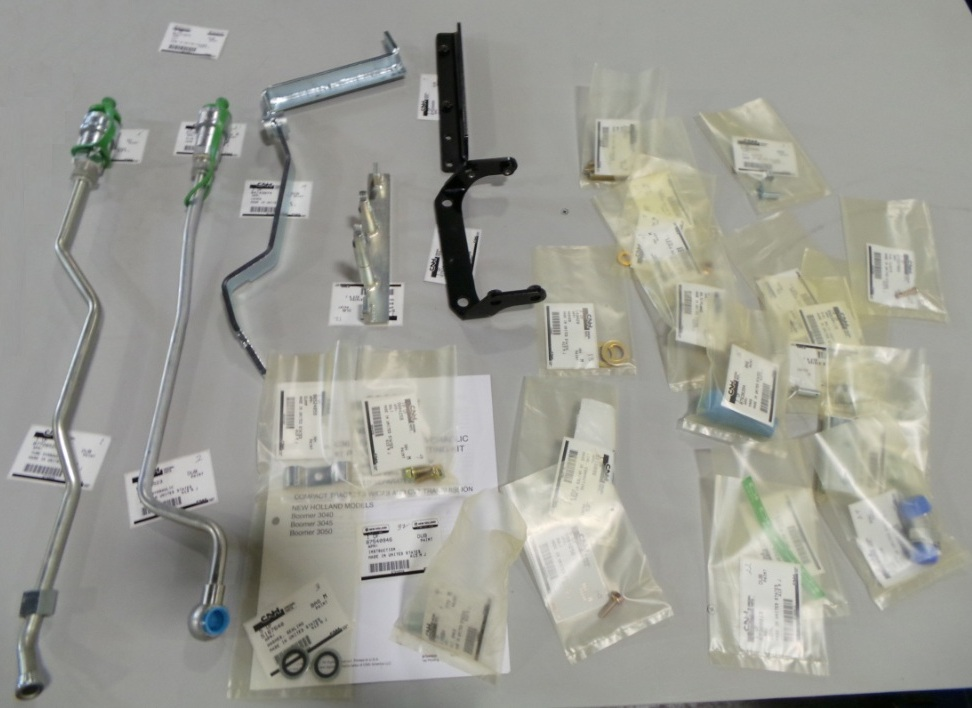

Запчасти Case IH FARMALL 40 (07.08[02]) - KIT ASSY REMOTE VALVE NO 1 (07) - HYDRAULIC SYSTEM

1

84171974

KIT

Incl 2 - 32

1шт.

2

87540946

INSTRUCTION

1шт.

3

87520097

BRACKET

Bracket Assy Remote Valve Couplers

1шт.

4

87520099

BRACKET

Bracket Assy Remote Valve 1 and 2

1шт.

5

87327028

45 ELBOW

1шт.

6

87728522

HYD TUBE

Remote #1 Raise

1шт.

7

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

8

87728523

HYD TUBE

Remote #1 Lower

1шт.

9

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

10

256231

COUPLING, QUICK, FEM

2шт.

11

86524859

CLAMP

1шт.

12

280458

BOLT,Hex, 3/8" - 24 x 2 3/4", Gr 8

3шт.

13

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

14

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

15

5116896

LINK,19.05mm Pitch

1шт.

16

87552579

BRACKET

Remote Valve Levers

1шт.

17

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

18

84143074

LEVER

First Remote Valve Control

1шт.

19

87636394

KNOB

Control Knob Assembly Green

1шт.

20

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

21

10569471

LOCK WASHER,Lock, 3/8"

3шт.

22

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

3шт.

23

5179576

PLUG,24mm, Green

2шт.

24

87300013

DECAL

1шт.

25

87638320

DECAL

1шт.

26

84158743

BAR

1шт.

27

84158746

ROD

1шт.

28

374834

CLEVIS PIN,M8 x 22

1шт.

29

86639115

COTTER PIN,M2 x 12

1шт.

30

87597960

CLEVIS PIN,6.35mm OD x 19.56mm L

1шт.

31

86523849

COTTER PIN,1/16" x 3/4"

1шт.

32

87602942

CLEVIS PIN,8 x 16mm Short ZND

1шт.
