(06.06) - RELAYS, DIODES & MODULES

Запчасти Case IH FARMALL 40 (06.06) - RELAYS, DIODES & MODULES (06) - ELECTRICAL SYSTEMS

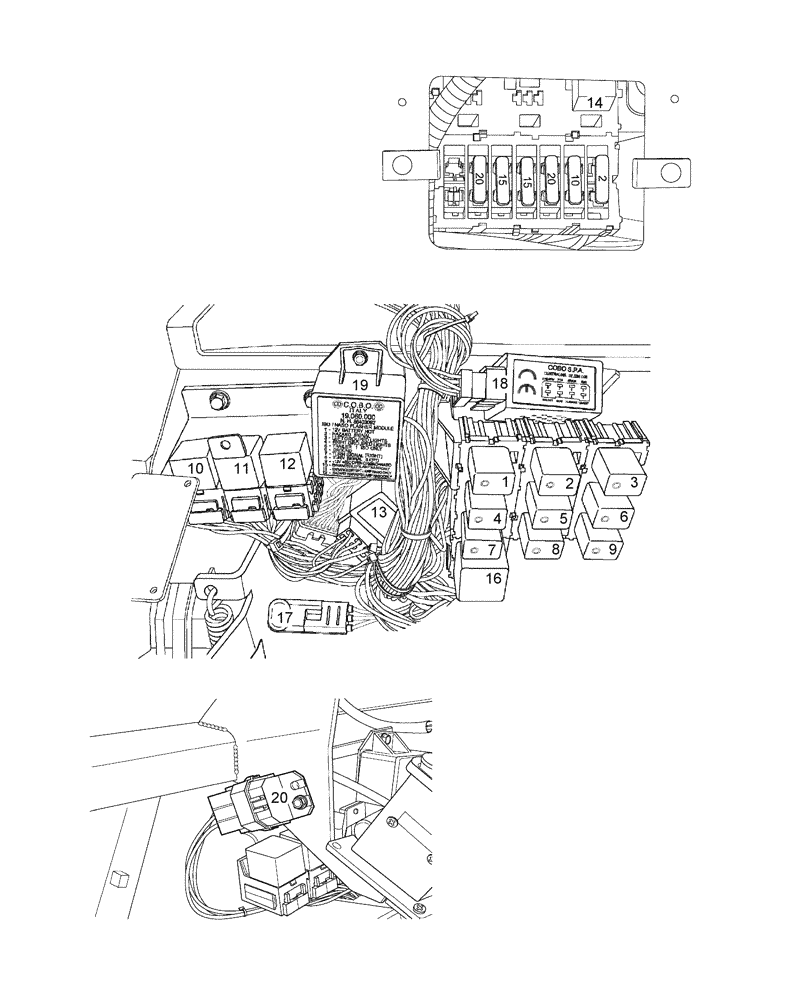

Схема запчастей Case IH FARMALL 40 - (06.06) - RELAYS, DIODES & MODULES (06) - ELECTRICAL SYSTEMS
7
16
5
10
2
14
18
11
19
9
13
8
20
6
3
17
4
12
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86509590

RELAY

PTO Safety Start

1шт.

2

86509590

RELAY

Glow Plug Lamp

1шт.

3

86509590

RELAY

Range Low Shift

1шт.

4

86509590

RELAY

Fuel Shutoff

1шт.

5

86509590

RELAY

Cruise Control Latch

1шт.

6

86509590

RELAY

Flasher Cutoff

1шт.

7

86509590

RELAY

Park Brake Interface

1шт.

8

86509590

RELAY

Range High Shift

1шт.

9

86509590

RELAY

Front Head Lights

1шт.

10

86537972

RELAY

Neutral Start

1шт.

11

86400244

RELAY,12V, 40A

Glow Plug Power

1шт.

12

86537972

RELAY

Cab Power

1шт.

13

SBA385870301

TIMER,12V

Glow Plug

1шт.

14

86509590

RELAY

HVAC Relay, located near cab fuse block, top rear of cab

1шт.

16

86512707

DIODE

Module, HST "High" Range

1шт.

17

774735

DIODE,6A

HST Cruise Control, 6 Amp

1шт.

18

5188605

BUZZER,12V, 0.7A

Time-Delay

1шт.

19

87559427

MODULE

Flasher Module with Enhanced Brake Lamp Functionality

1шт.

20

86400241

CONTROL UNIT

Operator's Safety Module

1шт.
