(1.75.1/02) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION - ELECTR. CONTROL UNIT (VAR.330275-331275 / 743510; VAR.330273)

Запчасти Case IH FARMALL 105N (1.75.1/02) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION - ELECTR. CONTROL UNIT (VAR.330275-331275 / 743510; VAR.330273) (06) - ELECTRICAL SYSTEMS

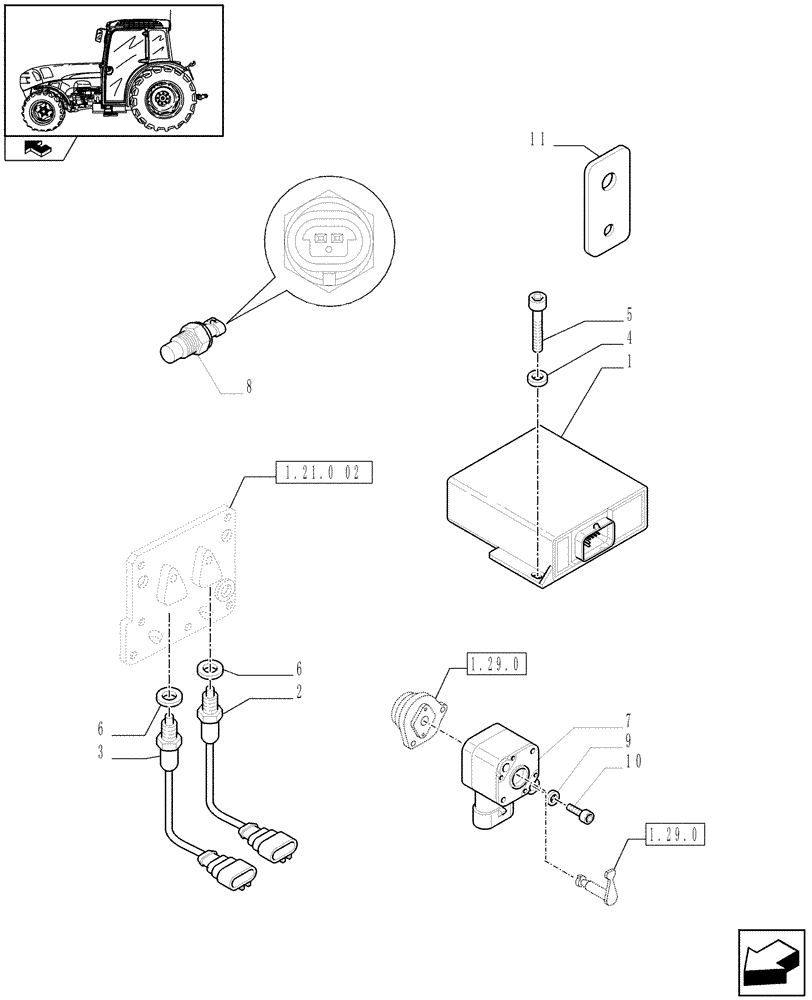

Схема запчастей Case IH FARMALL 105N - (1.75.1/02) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION - ELECTR. CONTROL UNIT (VAR.330275-331275 / 743510; VAR.330273) (06) - ELECTRICAL SYSTEMS
11
1.21.0 02
9
10
2
1.29.0
7
5
1
6
6
1.29.0
4
home
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84387340

ECU

1шт.

2

87585979

SWITCH

Grey, Serial Range: -`0

1шт.

Gear Control Neutral Position Detector

1шт.

3

87585980

SWITCH

Green, Serial Range: -`0

1шт.

Range Control Neutral Position Detector

1шт.

4

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

5

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

2шт.

6

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

M14

2шт.

7

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.

8

82028133

SENSOR,3/8"-18

, Serial Range: -`0

1шт.

Transmission Temperature

1шт.

9

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

10

13274911

SCREW,Cross Pan Hd, M5 x 35mm

2шт.

11

84226414

BRACKET

1шт.
