(1.92.29/05[01A]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - BEGIN YR 26-JUN-2012 (VAR.332157; 332158 / 743508; 332159; 332160 / 743509)

Запчасти Case IH FARMALL 105N (1.92.29/05[01A]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - BEGIN YR 26-JUN-2012 (VAR.332157; 332158 / 743508; 332159; 332160 / 743509) (10) - OPERATORS PLATFORM/CAB

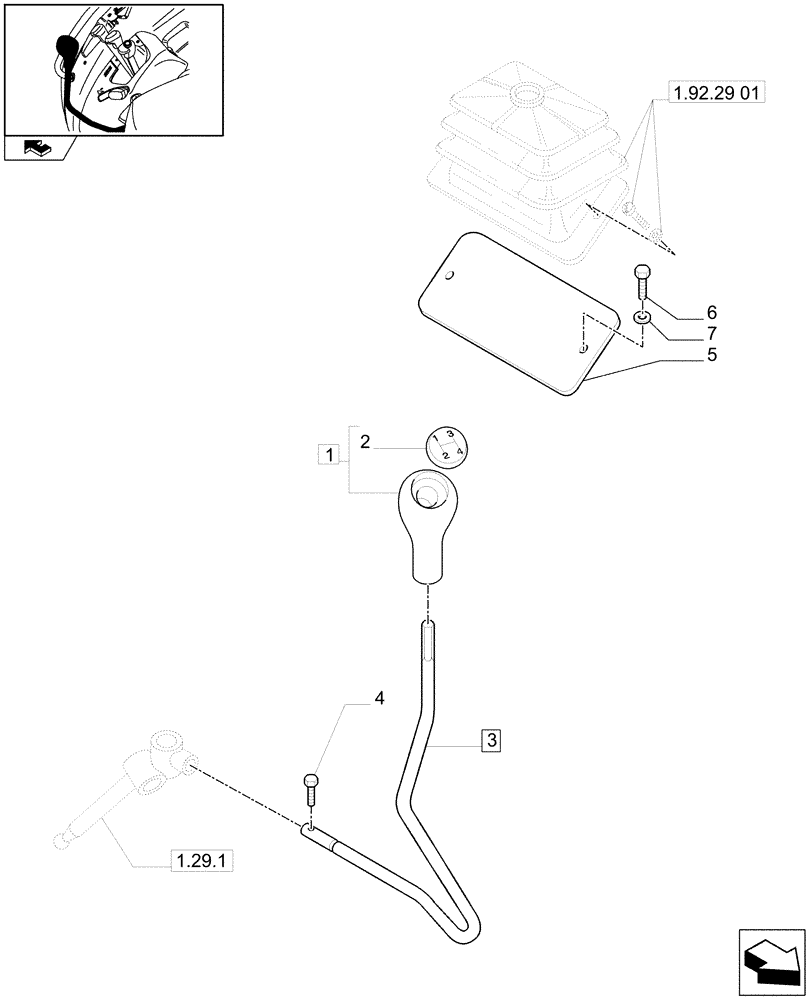

Схема запчастей Case IH FARMALL 105N - (1.92.29/05[01A]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - BEGIN YR 26-JUN-2012 (VAR.332157; 332158 / 743508; 332159; 332160 / 743509) (10) - OPERATORS PLATFORM/CAB
5
1
3
7
2
home
6
4
1.92.29 01
1.29.1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5184458

KNOB

ASSY, Incl. 2

1шт.

2

5172479

CUP COVER

1шт.

3

84551378

CONTROL LEVER

Incl. 1, 4, L/CAB

1шт.

4

44013453

SCREW,Hex, M12 x 1.25 x 33mm

M12x28

1шт.

5

5190510

FRAME

1шт.

6

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

2шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.
