(1.40.1/08) - STD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - DIFF. LOCK CONTROL

Запчасти Case IH FARMALL 75N (1.40.1/08) - STD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - DIFF. LOCK CONTROL (04) - FRONT AXLE & STEERING

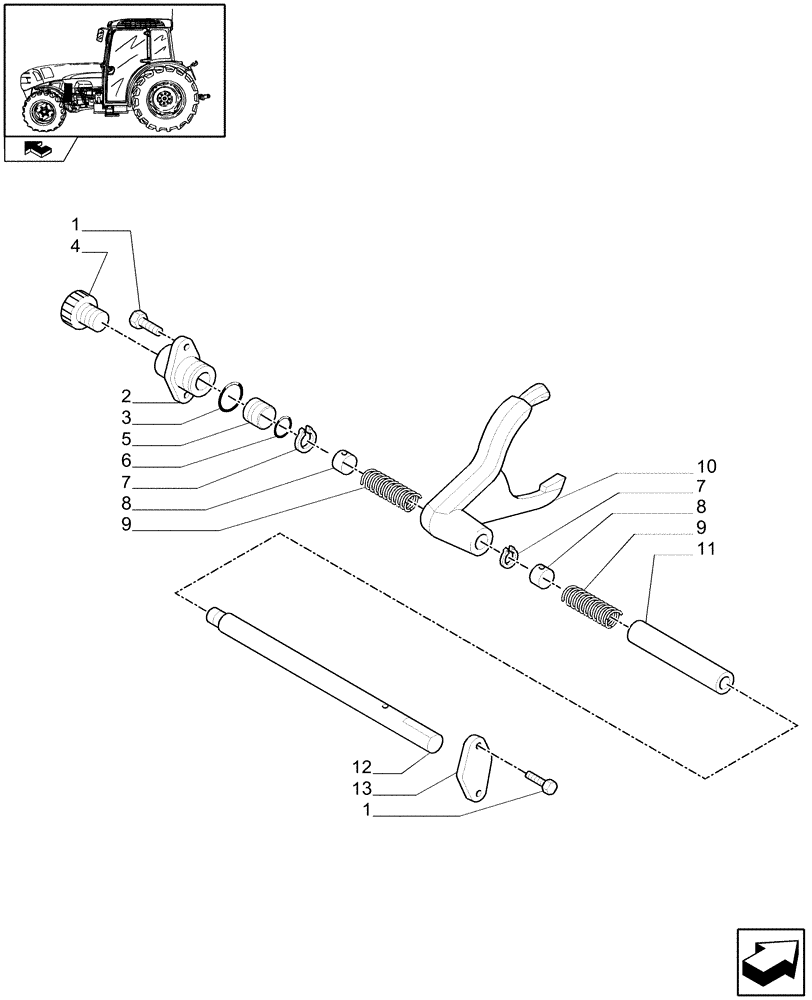

Схема запчастей Case IH FARMALL 75N - (1.40.1/08) - STD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - DIFF. LOCK CONTROL (04) - FRONT AXLE & STEERING
6
1
4
2
3
5
1
1
3
1
2
1
9
8
7
9
8
7
1
1
0
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10910621

BOLT,Hex, M8 x 1 x 20mm, Cl 8.8

M8 x 20

4шт.

2

5194170

SUPPORT

1шт.

3

5194171

O-RING

1шт.

4

5194181

PLUG

M14

1шт.

5

5194172

PISTON

1шт.

6

5194173

O-RING

1шт.

7

5194174

SNAP RING,M12, Int

D=12

2шт.

8

5194175

RING

2шт.

9

5194176

SPRING

2шт.

10

87313806

YOKE

1шт.

11

5194178

SLEEVE

1шт.

12

5194179

DRIVE SHAFT

1шт.

13

5194180

FLANGE

1шт.
