(1.14.7/01) - SIDE FUEL TANK SUPPORTS AND FASTENING STRIPS - C6808

Запчасти Case IH FARMALL 95N (1.14.7/01) - SIDE FUEL TANK SUPPORTS AND FASTENING STRIPS - C6808 (02) - ENGINE EQUIPMENT

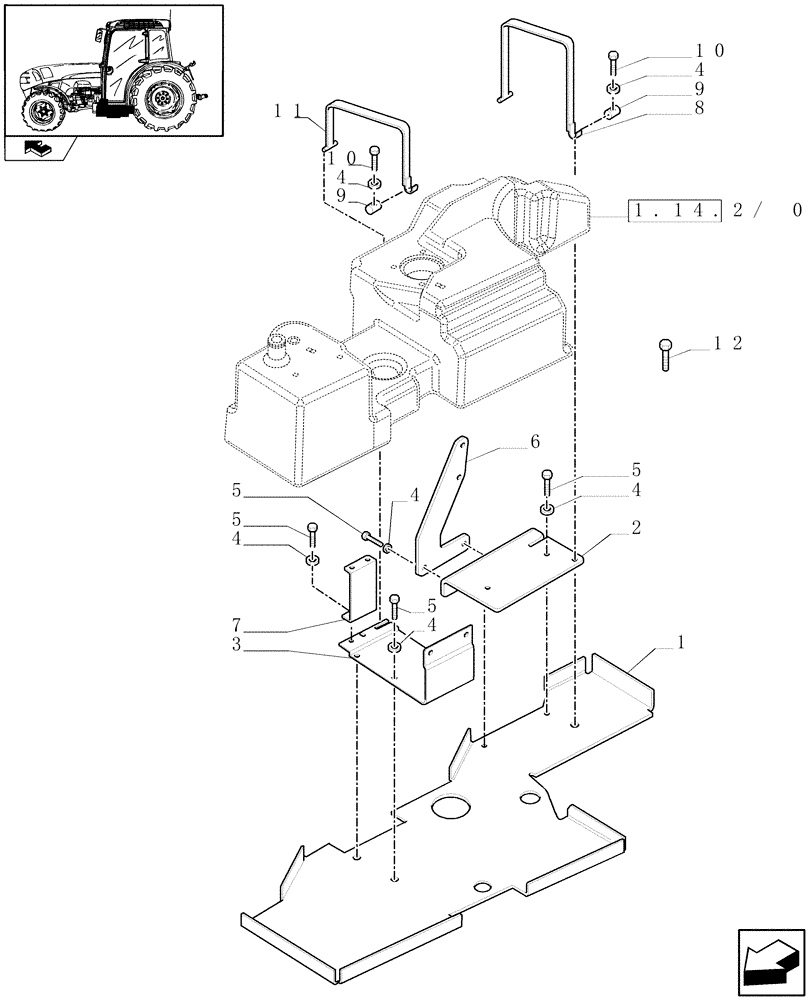

Схема запчастей Case IH FARMALL 95N - (1.14.7/01) - SIDE FUEL TANK SUPPORTS AND FASTENING STRIPS - C6808 (02) - ENGINE EQUIPMENT
4
12
6
8
5
5
9
1.14.2/ 01
2
4
7
home
10
9
1
4
3
11
4
5
4
4
10
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87399815

SHIELD

1шт.

2

87399817

BRACKET

1шт.

3

87399813

BRACKET

1шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

16шт.

5

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

6

87399818

BRACKET

1шт.

7

87399814

BRACKET

1шт.

8

87385705

BRACKET

1шт.

9

5120755

PIN,16mm OD x 15mm L

2шт.

10

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

11

87384090

BRACKET

1шт.

12

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 13
