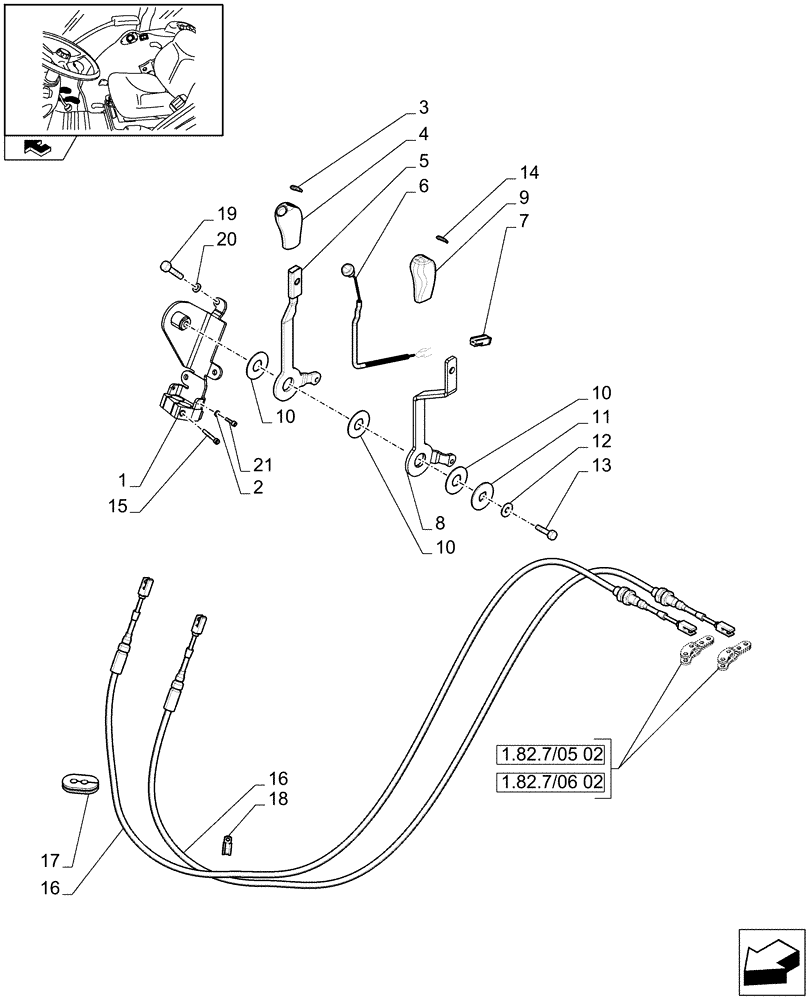

Запчасти Case IH FARMALL 105V (1.92.82/03[03]) - THREE REMOTE VALVES WITH FLOW DIVIDER - LEVER AND KNOB , W/O CAB (VAR. 330391 - 333391 / 743526; VAR. 331391 - 334391 / 743527) (10) - OPERATORS PLATFORM/CAB

1

84481979

BRACKET

1шт.

2

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

3

47057200

IDEOGRAM

Shift Symbol 2

1шт.

4

84121634

KNOB

1шт.

5

84519061

LEVER

2nd Command Hand Distributor

1шт.

6

5192432

SWITCH

1шт.

7

12483580

MULTIPOLE CONNECTOR

1шт.

8

84519053

LEVER

1st Command Hand Distributor

1шт.

9

47056482

KNOB

1шт.

10

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

11

5188905

WASHER,18mm ID x 50mm OD x 3 Thk

1шт.

12

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

13

5187364

BOLT,Hex, M10 x 1.25 x 22mm

1шт.

14

47057199

IDEOGRAM

Shift Symbol 1

1шт.

15

14358920

HEX SOC SCREW,M5 x 45mm, Cl 8.8, Full Thd

1шт.

16

84481971

FLEXIBLE CABLE

2шт.

17

84481972

GROMMET,2x12.8mm ID x 44mm L x 6mm Thk

1шт.

18

10115601

CLIP,10mm, Coat, P Type

1шт.

19

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

3шт.

20

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

3шт.

21

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

3шт.
