(35.204.BJ[02]) - VAR - 743569 - REMOTE CONTROL VALVE, LINE, MECHANICAL

Запчасти Case IH FARMALL 105C (35.204.BJ[02]) - VAR - 743569 - REMOTE CONTROL VALVE, LINE, MECHANICAL (35) - HYDRAULIC SYSTEMS

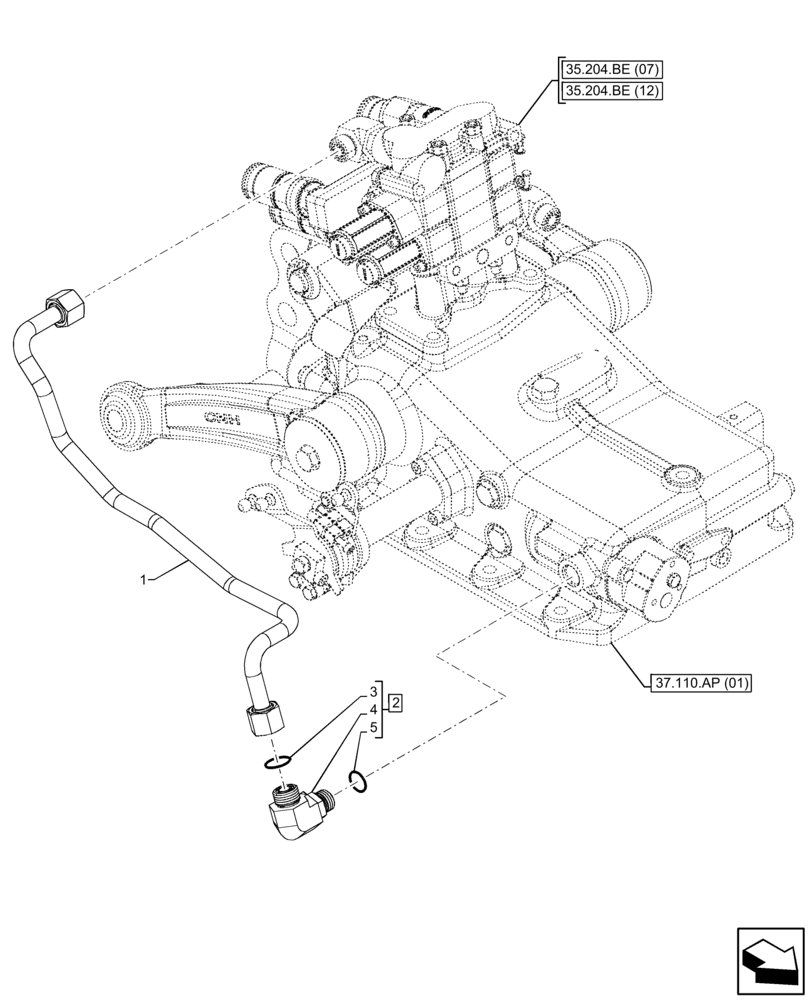

Схема запчастей Case IH FARMALL 105C - (35.204.BJ[02]) - VAR - 743569 - REMOTE CONTROL VALVE, LINE, MECHANICAL (35) - HYDRAULIC SYSTEMS
37.110.ap (01)
2
35.204.be (12)
4
35.204.be (07)
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84390521

TUBE

From EDC to Ext. Cylinders

1шт.

2

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow body, Incl in 2

1шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 5
