(21.112.AC[03]) - VAR - 390430, 334114, 334115, 334117 - TRANSMISSION HOUSING, COVERS (16X16)

Запчасти Case IH FARMALL 105U (21.112.AC[03]) - VAR - 390430, 334114, 334115, 334117 - TRANSMISSION HOUSING, COVERS (16X16) (21) - TRANSMISSION

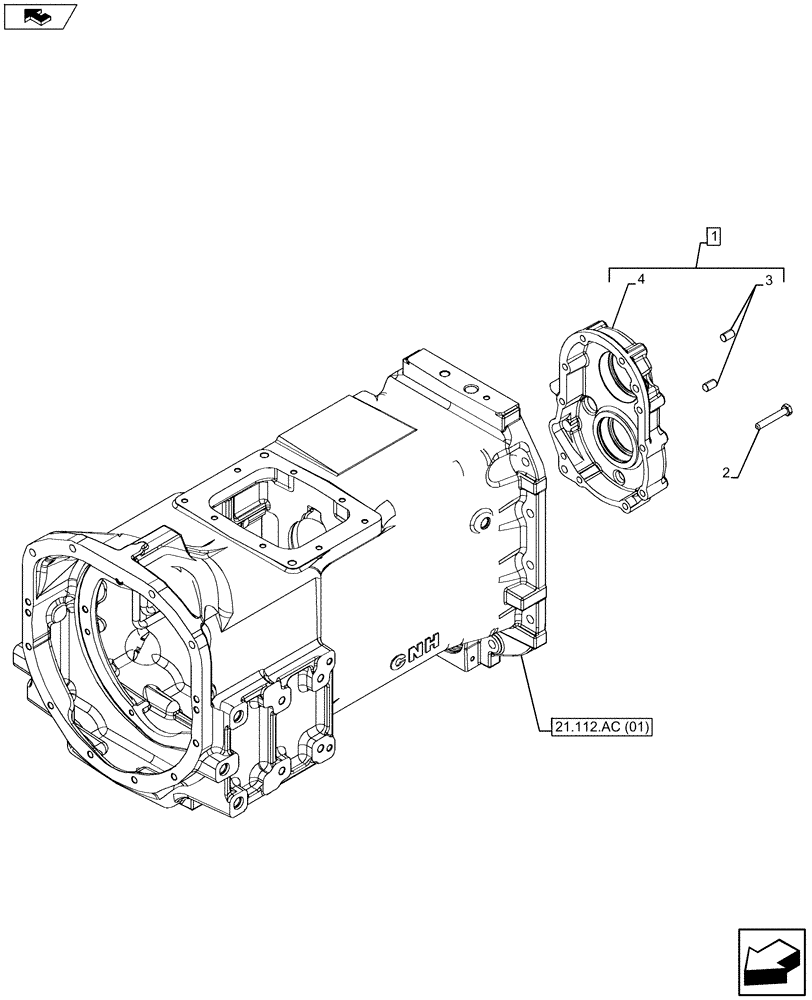

Схема запчастей Case IH FARMALL 105U - (21.112.AC[03]) - VAR - 390430, 334114, 334115, 334117 - TRANSMISSION HOUSING, COVERS (16X16) (21) - TRANSMISSION
3
4
21.112.ac (01)
2
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47126590

COVER

Assy, Incl 3 - 4

1шт.

2

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

10шт.

3

83980528

DOWEL,12.71mm OD x 20.57mm L

2шт.

4

NSS

NOT SOLD SEPARAT

Wall, Incl in 1

1шт.

Выбрано товаров: 4
