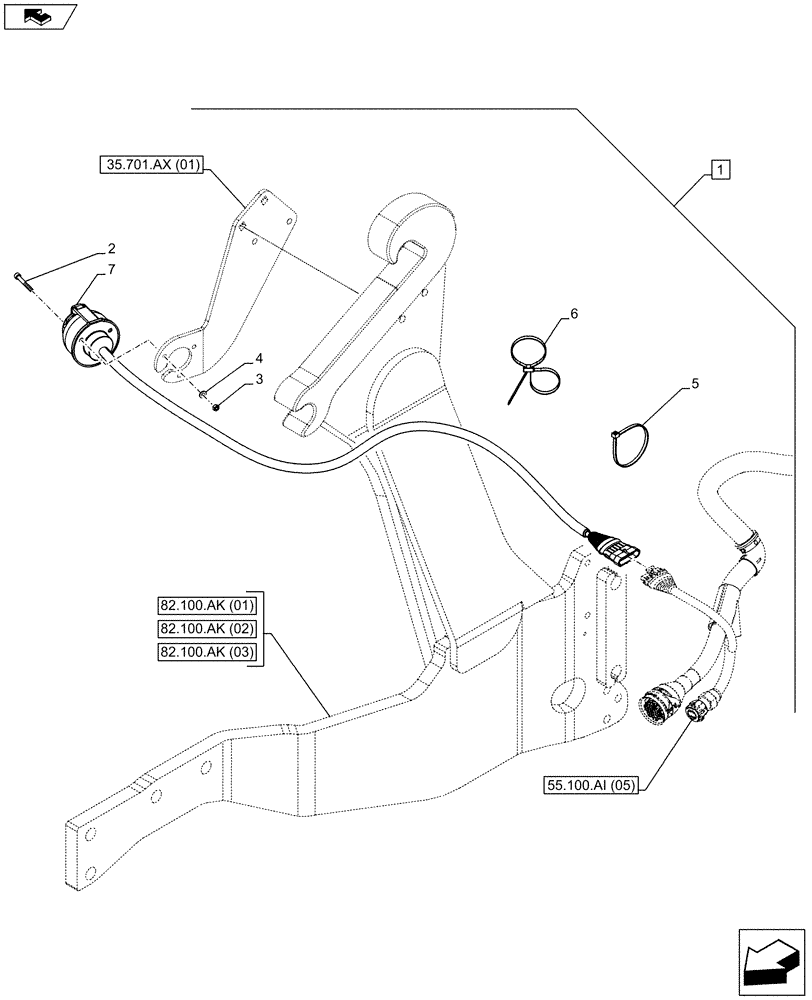

Запчасти Case IH FARMALL 105U (88.082.AA[03]) - DIA KIT, FRONT LOADER, BUCKET, ISO (88) - ACCESSORIES

1

718195050

DIA KIT, TRACTOR

Dia Kit, Front Loader Bucket Europe, Incl 2 - 7

1шт.

Refer to Installation Instructions for Correct Assembly Procedure, See also fig. 88.082.AA 01, 88.082.AA 02, 88.082.AA 04

1шт.

2

14358824

HEX SOC SCREW,M5 x 40mm, Cl 8.8, Full Thd

3шт.

3

15896414

NUT,M5, Cl 8

3шт.

4

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

3шт.

5

14560287

CABLE TIE,207.00mm L

1шт.

6

82012869

CABLE TIE,300mm L, Nylon, Black

1шт.

7

84487722

HARNESS

Front Loader Socket

1шт.
