(1.28.7/04[02]) - FOR HEAVY DUTY REAR 30KM/H TRANSMISSION - SPEED DRIVEN SHAFT AND GEARS (VAR.337408)

Запчасти Case IH FARMALL 105U (1.28.7/04[02]) - FOR HEAVY DUTY REAR 30KM/H TRANSMISSION - SPEED DRIVEN SHAFT AND GEARS (VAR.337408) (03) - TRANSMISSION

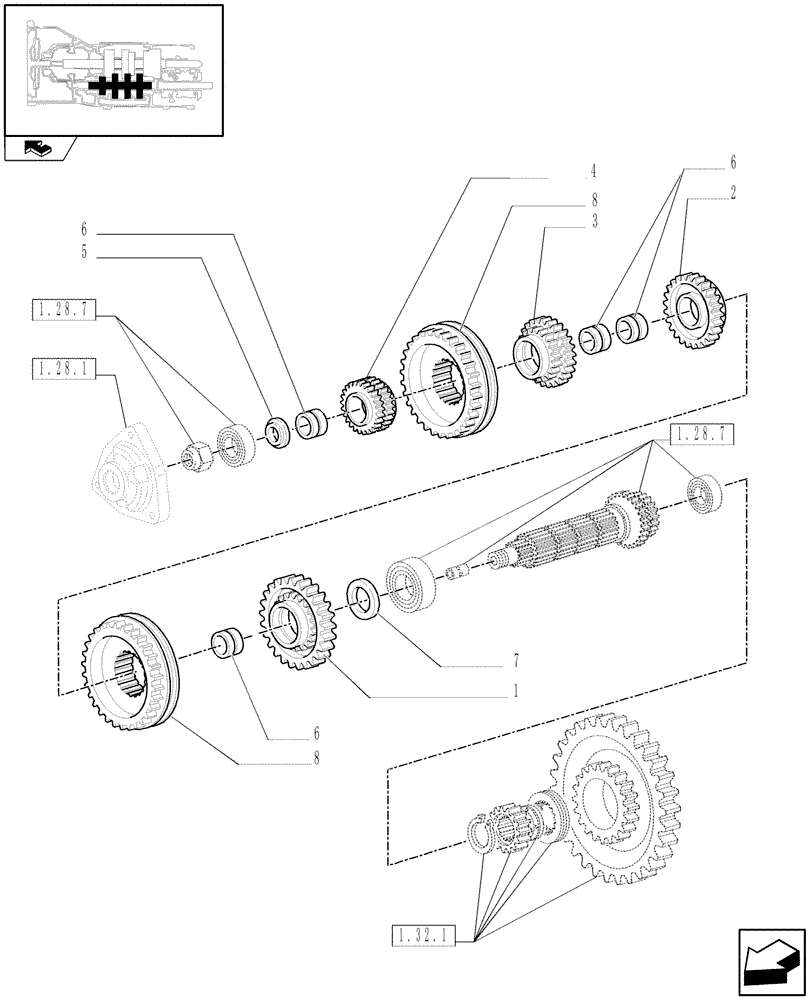

Схема запчастей Case IH FARMALL 105U - (1.28.7/04[02]) - FOR HEAVY DUTY REAR 30KM/H TRANSMISSION - SPEED DRIVEN SHAFT AND GEARS (VAR.337408) (03) - TRANSMISSION
4
8
7
6
home
2
6
6
3
1.32.1
1.28.7
1.28.1
1.28.7
8
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5172047

DRIVEN GEAR

1st Speed, 52T and 38T

1шт.

2

5172048

DRIVEN GEAR

2nd Speed

1шт.

3

5179673

DRIVEN GEAR

3rd Speed

1шт.

4

5172050

DRIVEN GEAR

4th Speed

1шт.

5

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

1шт.

6

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

7

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

8

87358181

SYNCHRONIZER

2шт.
