(1.32.0[02]) - CASINGS, COVERS AND SUPPORTS

Запчасти Case IH FARMALL 105U (1.32.0[02]) - CASINGS, COVERS AND SUPPORTS (03) - TRANSMISSION

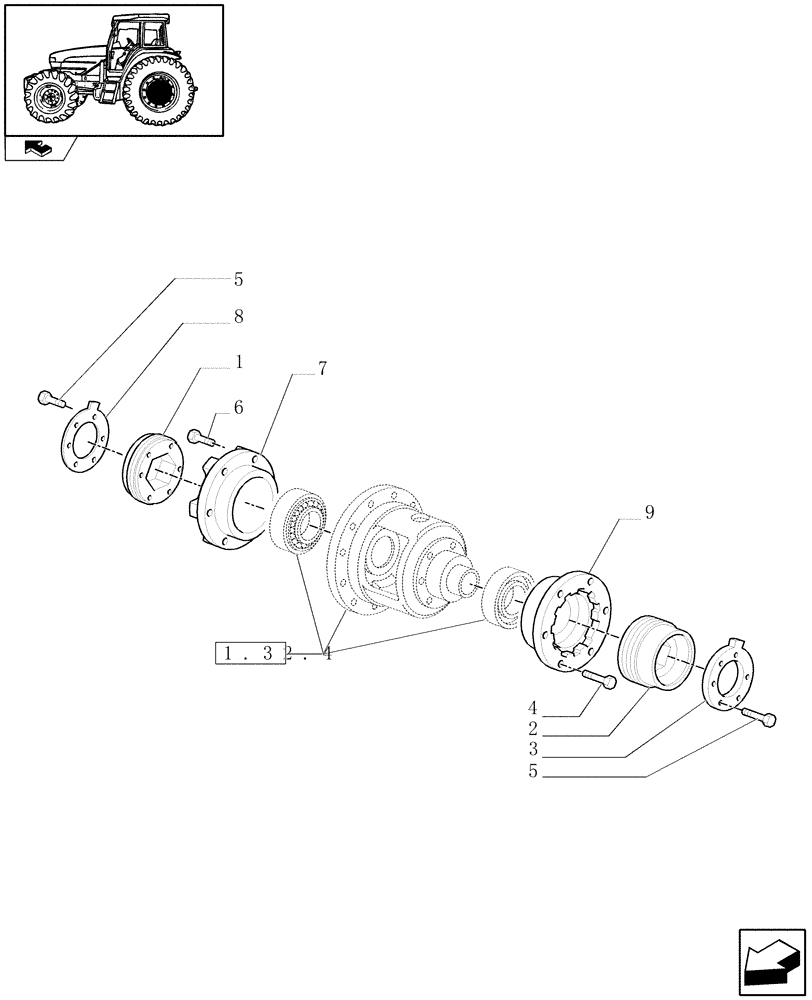

Схема запчастей Case IH FARMALL 105U - (1.32.0[02]) - CASINGS, COVERS AND SUPPORTS (03) - TRANSMISSION
1
home
4
6
2
1.32.4
5
9
3
8
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5198105

LOCK NUT

RH

1шт.

2

5198104

BEARING LOCK NUT,Hex, M8 x 1.25, Cl 8.8

1шт.

3

5087672

LOCK WASHER,50mm ID x 93mm OD x 4mm Thk

1шт.

4

14233724

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

5

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

14234024

LOCK BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8

6шт.

7

5181270

SUPPORT

RH

1шт.

8

5198101

NUT

RH

1шт.

9

5181269

SUPPORT

LH

1шт.
