(41.216.050) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, STEERING CYLINDER

Запчасти Case IH FARMALL 110U (41.216.050) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, STEERING CYLINDER (41) - STEERING

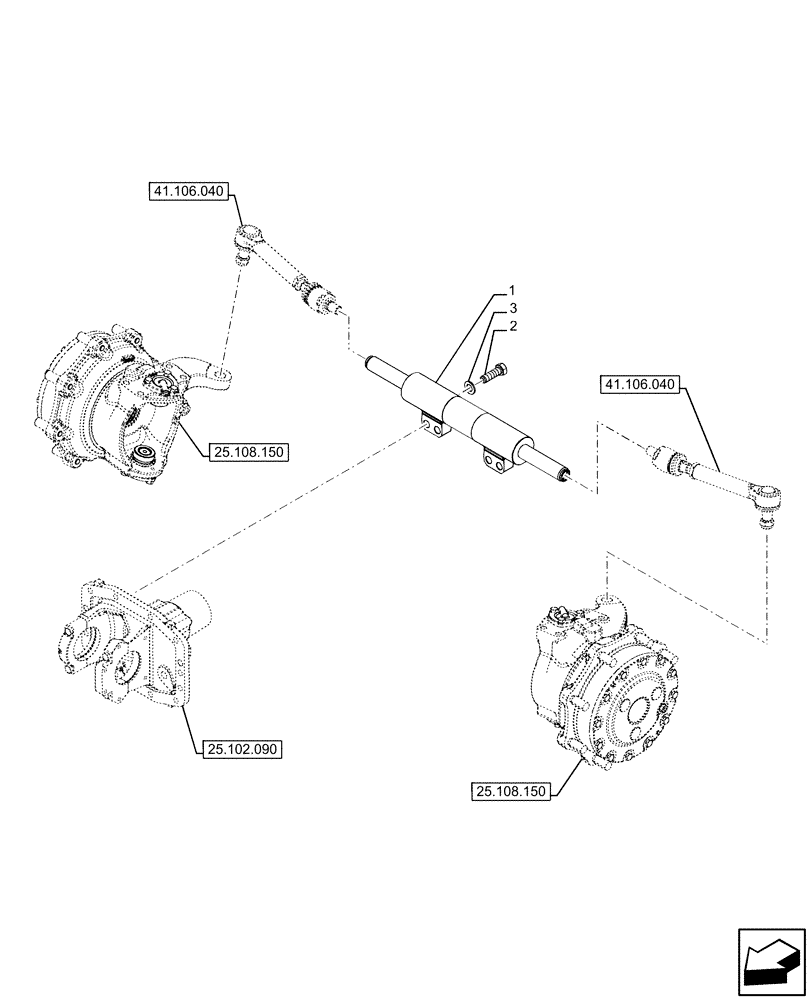

Схема запчастей Case IH FARMALL 110U - (41.216.050) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, STEERING CYLINDER (41) - STEERING
25.102.090
2
1
3
25.108.150
25.108.150
41.106.040
41.106.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47625377

STEERING CYLINDER

1шт.

2

47371337

BOLT,Hex, M18 x 1.5 x 60mm

M18 x 1.5 x 60

4шт.

3

84349418

WASHER,19mm ID x 34mm OD x 3mm Thk

4шт.

Выбрано товаров: 3
