(31.110.AB[03]) - VAR - 743565 - PTO 540 RPM - HYDRAULIC, DRIVEN SHAFT

Запчасти Case IH FARMALL 115C (31.110.AB[03]) - VAR - 743565 - PTO 540 RPM - HYDRAULIC, DRIVEN SHAFT (31) - IMPLEMENT POWER TAKE OFF

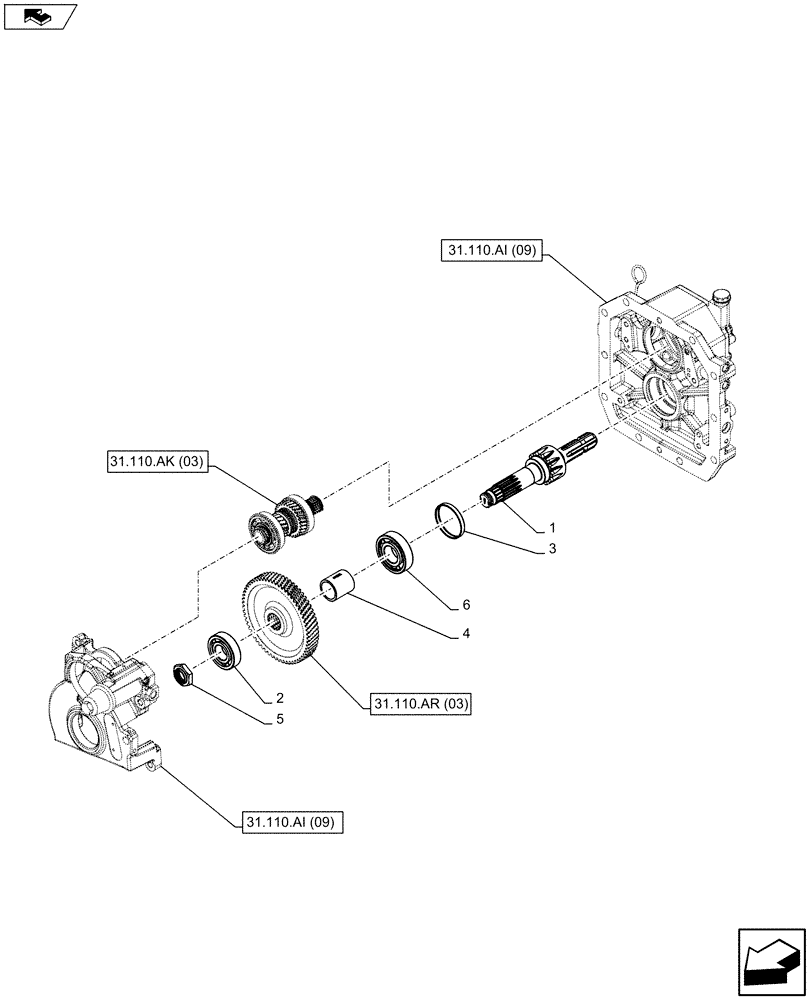

Схема запчастей Case IH FARMALL 115C - (31.110.AB[03]) - VAR - 743565 - PTO 540 RPM - HYDRAULIC, DRIVEN SHAFT (31) - IMPLEMENT POWER TAKE OFF
2
31.110.ai (09)
31.110.ar (03)
4
3
1
5
6
31.110.ai (09)
home
31.110.ak (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5171405

SHAFT

Driven

1шт.

2

47128681

BUSHING,35mm ID x 81mm OD x 21.0mm L

1шт.

3

5165976

OIL SEAL,60mm ID x 80mm OD x 10mm Thk

1шт.

4

5167815

SPACER,40.1mm ID x 50mm OD x 54.0mm L

D= 40 mm

1шт.

5

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

6

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.
