(31.114.AB[06]) - VAR - 743594 - PTO 540/1000 RPM, HYDRAULIC, DRIVEN SHAFT - ISO

Запчасти Case IH FARMALL 115C (31.114.AB[06]) - VAR - 743594 - PTO 540/1000 RPM, HYDRAULIC, DRIVEN SHAFT - ISO (31) - IMPLEMENT POWER TAKE OFF

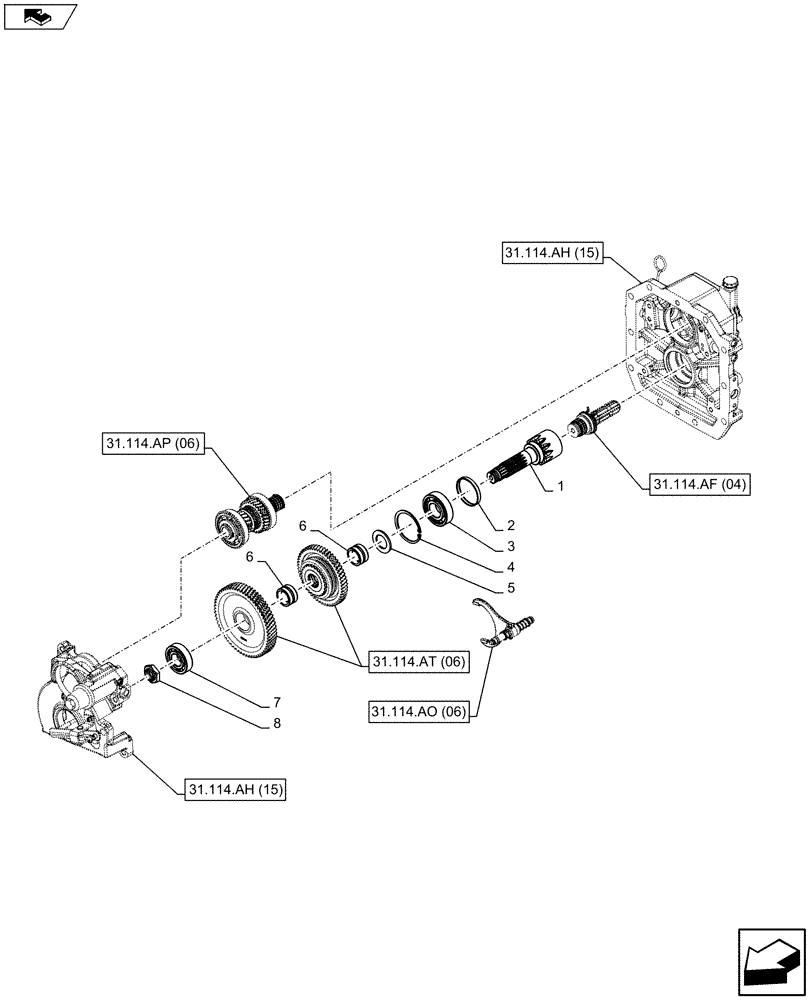

Схема запчастей Case IH FARMALL 115C - (31.114.AB[06]) - VAR - 743594 - PTO 540/1000 RPM, HYDRAULIC, DRIVEN SHAFT - ISO (31) - IMPLEMENT POWER TAKE OFF
31.114.ap (06)
31.114.af (04)
4
31.114.ao (06)
3
5
6
home
31.114.ah (15)
8
6
31.114.at (06)
7
31.114.ah (15)
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5198353

SHAFT

Driven

1шт.

2

5165976

OIL SEAL,60mm ID x 80mm OD x 10mm Thk

1шт.

3

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

4

11062476

SNAP RING,M90, Int

1шт.

5

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

6

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

7

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

8

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.
