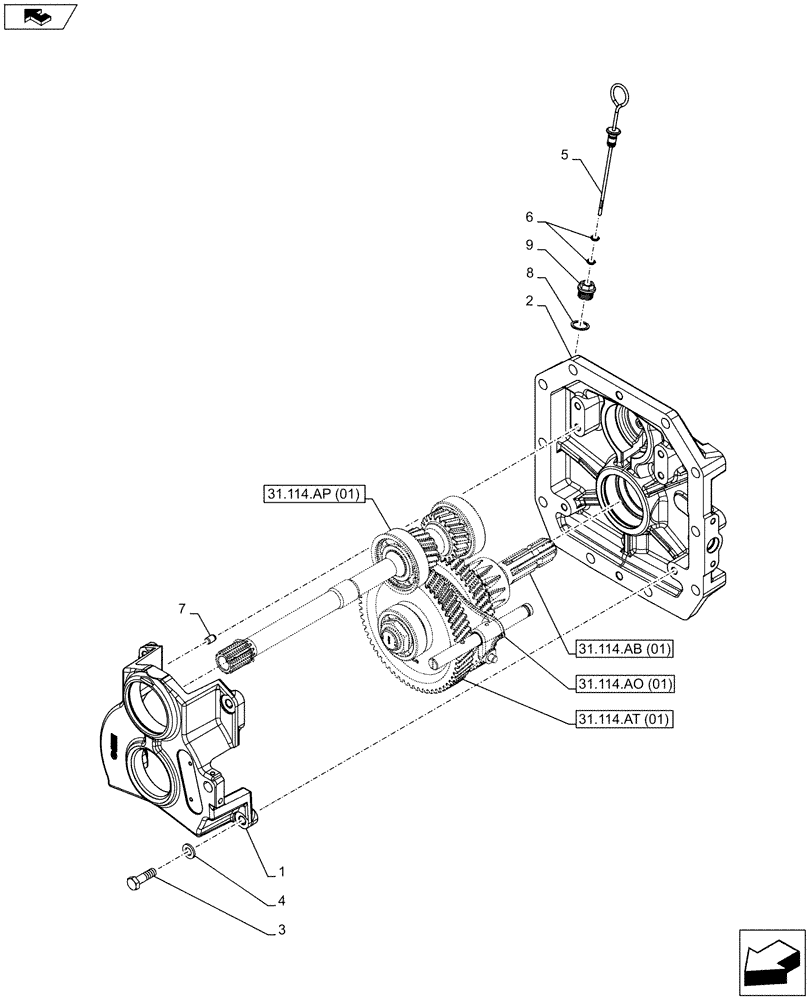

Запчасти Case IH FARMALL 115C (31.114.AH[01]) - VAR - 743566 - PTO 540-540E RPM, MECHANICAL, CASING, DIPSTICK, W/O CAB (31) - IMPLEMENT POWER TAKE OFF

1

87307208

SUPPORT

1шт.

2

87346814

COVER

1шт.

3

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

4

11190779

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

D=13 x 24 x 2.8 x 3.3 mm

4шт.

5

5169720

DIPSTICK,207mm L

ASSY

1шт.

6

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

7

10839710

DOWEL,M10 x 15.00mm

2шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

9

5169718

PLUG,M22 x 1.5

1шт.
