(31.114.AH[15]) - VAR - 743594 - PTO 540/1000 RPM, HYDRAULIC, CASING - ISO

Запчасти Case IH FARMALL 115C (31.114.AH[15]) - VAR - 743594 - PTO 540/1000 RPM, HYDRAULIC, CASING - ISO (31) - IMPLEMENT POWER TAKE OFF

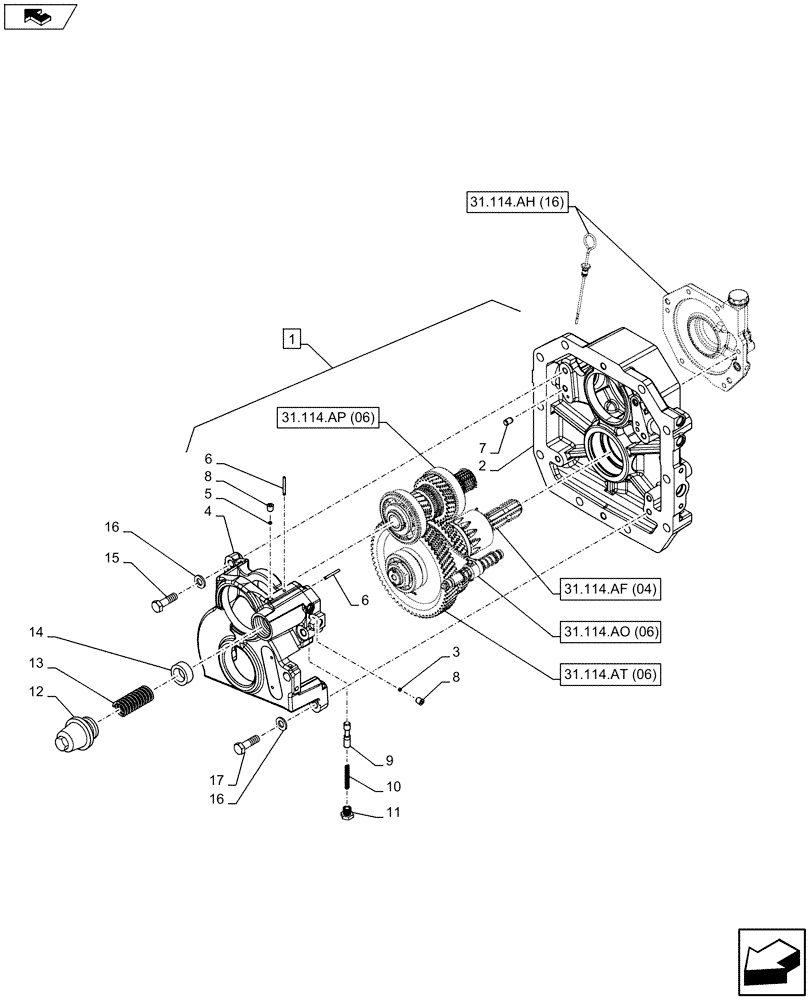

Схема запчастей Case IH FARMALL 115C - (31.114.AH[15]) - VAR - 743594 - PTO 540/1000 RPM, HYDRAULIC, CASING - ISO (31) - IMPLEMENT POWER TAKE OFF
13
16
5
3
6
31.114.ah (16)
4
16
6
31.114.at (06)
31.114.ao (06)
14
31.114.ap (06)
10
home
1
17
9
8
31.114.af (04)
15
12
8
7
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84135262

SUPPORT

ASSY, Incl 2-11

1шт.

2

NSS

NOT SOLD SEPARAT

Casing, Incl in 1

1шт.

3

5189186

RESTRICTOR VALVE,M8 x 1.25 x 5.3mm, Cl 8.8

1шт.

4

NSS

NOT SOLD SEPARAT

Bearing support, Incl in 1

1шт.

5

5193270

ORIFICE,M6 x 1 x 4mm, Cl 8.8

1шт.

6

10269150

PLUG,M6 x 1 x 60mm L

2шт.

7

10839710

DOWEL,M10 x 15.00mm

2шт.

8

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

2шт.

9

5194481

PISTON

1шт.

10

5166012

SPRING,Compression, 7.5mm OD x 57mm L

1шт.

11

5180551

PLUG

1шт.

12

5197632

CAP

1шт.

13

5137481

SPRING,Compression, 32mm OD x 122mm L

1шт.

14

5137480

PISTON,40mm OD

1шт.

15

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

16

11190779

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

17

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.
